How can I get a price quote for Siemens 6AG1055-1NB10-7BA2?

You can request a fast quote for Siemens 6AG1055-1NB10-7BA2 from Yılsa Engineering. Reference part number CEY-8EF3B03880BF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AG1055-1NB10-7BA2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AG1055-1NB10-7BA2 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AG1055-1NB10-7BA2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

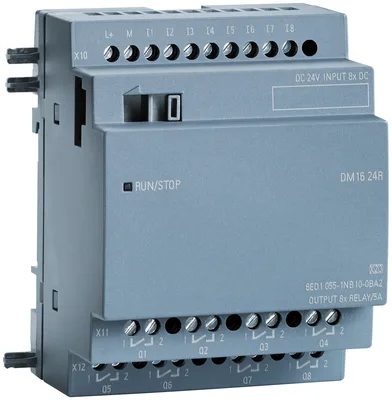

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6AG1055-1NB10-7BA2

SIPLUS LOGO! DM16 24R based on 6ED1055-1NB10-0BA2 with conformal coating, -40…+70 °C, start up -25 °C, expansion module, power supply / I/O: 24 V DC/24 V DC/relay, 8 DI/8 DQ, 4 MW for LOGO! 8

SiemensMFR # 6AG1055-1NB10-7BA2SKU # CEY-8EF3B03880BF

based on6ED1055-1NB10-0BA2

Mountingon 35 mm DIN rail, 4 spacing units wide

24 V DCYes

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

24 V ACNo

Have questions?Chat on WhatsApp

About This Product

SIPLUS LOGO! DM16 24R based on 6ED1055-1NB10-0BA2 with conformal coating, -40…+70 °C, start up -25 °C, expansion module, power supply / I/O: 24 V DC/24 V DC/relay, 8 DI/8 DQ, 4 MW for LOGO! 8

Siemens 6AG1055-1NB10-7BA2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

based on6ED1055-1NB10-0BA2

Installation type/mounting

Mountingon 35 mm DIN rail, 4 spacing units wide

Supply voltage

24 V DCYes

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

24 V ACNo

Digital inputs

Number of digital inputs8

Input voltage

Type of input voltageDC

for signal "0"< 5 V DC

for signal "1"> 12 V DC

Input current

for signal "0", max. (permissible quiescent current)0.85 mA

for signal "1", typ.2 mA

for standard inputs

— at "0" to "1", max.1.5 ms

— at "1" to "0", max.1.5 ms

Digital outputs

Number of digital outputs8; Relays

Short-circuit protectionNo

Controlling a digital inputYes

Switching capacity of the outputs

on lamp load, max.1 000 W

Output current

for signal "1" rated value5 A

for signal "1" minimum load current100 mA

Parallel switching of two outputs

for upratingNo

Switching frequency

with resistive load, max.2 Hz

with inductive load, max.0.5 Hz

mechanical, max.10 Hz

Switching capacity of contacts

— with inductive load, max.3 A

— with resistive load, max.5 A

Emission of radio interference acc. to EN 55 011

Limit class B, for use in residential areasYes

Degree and class of protection

IP degree of protectionIP20

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]59.1 kg

— global warming potential, (during production) [CO2 eq]5.82 kg

— global warming potential, (during operation) [CO2 eq]53.6 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.373 kg

Ambient temperature during operation

min.-40 °C; = Tmin; Startup @ -25 °C

max.70 °C; = Tmax; Tmax > +55 °C max. load 3 A per relay

At cold restart, min.-25 °C; incl. condensation / frost permitted (no commissioning under condensation conditions)

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

Relative humidity

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation

Coolants and lubricants

— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

Use on ships/at sea

— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

Coatings for printed circuit board assemblies acc. to EN 61086Yes; Class 2 for high reliability

Protection against fouling acc. to EN 60664-3Yes; Type 1 protection

Military testing according to MIL-I-46058C, Amendment 7Yes; Discoloration of coating possible during service life

Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AYes; Conformal coating, Class A

Dimensions

Width71.5 mm

Height90 mm

Depth58 mm
