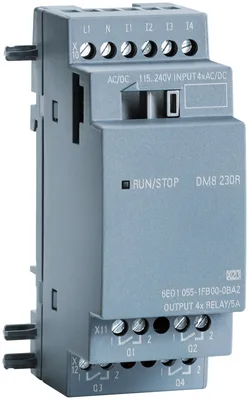

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6AG1055-1FB00-7BA2

SIPLUS LOGO! DM8 230V based on 6ED1055-1FB00-0BA2 with conformal coating, -40…+70 °C, start up -25 °C, expansion module, power supply / I/O: 230 V/230 V/relay, 2 MW, 4 DI/4 DQ for LOGO! 8

SiemensMFR # 6AG1055-1FB00-7BA2SKU # CEY-8EF3B03880C9

based on6ED1055-1FB00-0BA2

Mountingon 35 mm DIN rail, 2 spacing units wide

115 V DCYes

230 V DCYes

permissible range, lower limit (DC)100 V

permissible range, upper limit (DC)253 V

Have questions?Chat on WhatsApp

About This Product

SIPLUS LOGO! DM8 230V based on 6ED1055-1FB00-0BA2 with conformal coating, -40…+70 °C, start up -25 °C, expansion module, power supply / I/O: 230 V/230 V/relay, 2 MW, 4 DI/4 DQ for LOGO! 8

Siemens 6AG1055-1FB00-7BA2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

based on6ED1055-1FB00-0BA2

Installation type/mounting

Mountingon 35 mm DIN rail, 2 spacing units wide

Supply voltage

115 V DCYes

230 V DCYes

permissible range, lower limit (DC)100 V

permissible range, upper limit (DC)253 V

115 V ACYes

230 V ACYes

Line frequency

permissible range, lower limit47 Hz

permissible range, upper limit63 Hz

Digital inputs

Number of digital inputs4

Input voltage

Type of input voltageAC/DC

for signal "0"< 40 V AC, < 30 V DC

for signal "1"> 79 V AC, > 79 V DC

Input current

for signal "0", max. (permissible quiescent current)0.06 mA; 0.05 mA with AC, 0.06 mA with DC

for signal "1", typ.0.37 mA

for standard inputs

— at "0" to "1", max.40 ms

— at "1" to "0", max.75 ms

Digital outputs

Number of digital outputs4; Relays

Short-circuit protectionNo

Controlling a digital inputYes

Switching capacity of the outputs

on lamp load, max.1 000 W; 500 W at 115V AC

Output current

for signal "1" rated value5 A

for signal "1" minimum load current100 mA

Parallel switching of two outputs

for upratingNo

Switching frequency

with resistive load, max.2 Hz

with inductive load, max.0.5 Hz

mechanical, max.10 Hz

Switching capacity of contacts

— with inductive load, max.3 A

— with resistive load, max.5 A

Emission of radio interference acc. to EN 55 011

Limit class B, for use in residential areasYes

Degree and class of protection

IP degree of protectionIP20

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]145 kg

— global warming potential, (during production) [CO2 eq]7.49 kg

— global warming potential, (during operation) [CO2 eq]138 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.491 kg

Ambient temperature during operation

min.-40 °C; = Tmin; Startup @ -25 °C

max.70 °C; = Tmax; Tmax > +55 °C max. load 3 A per relay or max. total current 10 A

At cold restart, min.-25 °C; incl. condensation / frost permitted (no commissioning under condensation conditions)

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m)

Relative humidity

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation

Coolants and lubricants

— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

Use on ships/at sea

— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

Coatings for printed circuit board assemblies acc. to EN 61086Yes; Class 2 for high reliability

Protection against fouling acc. to EN 60664-3Yes; Type 1 protection

Military testing according to MIL-I-46058C, Amendment 7Yes; Discoloration of coating possible during service life

Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AYes; Conformal coating, Class A

Dimensions

Width35.5 mm

Height90 mm

Depth58 mm
