How can I get a price quote for Siemens 6AG1055-0AA00-2BA0?

You can request a fast quote for Siemens 6AG1055-0AA00-2BA0 from Yılsa Engineering. Reference part number CEY-8EF3B03880CD. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AG1055-0AA00-2BA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AG1055-0AA00-2BA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AG1055-0AA00-2BA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

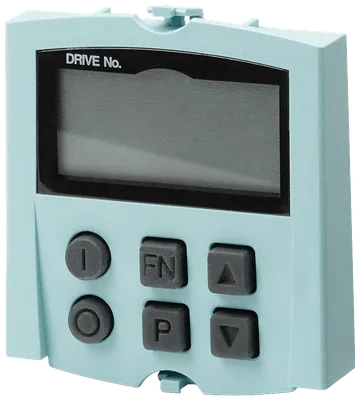

Siemens 6AG1055-0AA00-2BA0

SIPLUS S120 BOP20 Basic Operator Panel based on 6SL3055-0AA00-4BA0 with conformal coating, -20…+50 °C, actuator with miniature display 2-line, 6 keys for parameter assignment and diagnostics suitable for Control Units CU305, CU310, CU320

SiemensMFR # 6AG1055-0AA00-2BA0SKU # CEY-8EF3B03880CD

Product type designationBOP20

based on6SL3055-0AA00-4BA0

V/f control with ECO mode linear/squareNo

V/f control with flux current controlNo

Vector control with encoderNo

Vector control without encoderNo

Have questions?Chat on WhatsApp

About This Product

Siemens 6AG1055-0AA00-2BA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationBOP20

based on6SL3055-0AA00-4BA0

Product function

V/f control with linear/square parameterization capabilityNo

V/f control with ECO mode linear/squareNo

V/f control with flux current controlNo

Vector control with encoderNo

Vector control without encoderNo

Digital inputs

Number of digital inputs0

With fail-safe0

Analog inputs

Number of analog inputs0

Interfaces

Number of PROFINET interfaces0

Number of RS 485 interfaces0

Protocols

PROFIBUSNo

Degree and class of protection

IP degree of protectionIP20

Standards, approvals, certificates

Certificate of suitabilityCE

Ambient temperature during operation

min.-20 °C; = Tmin

max.70 °C; = Tmax

min. [°F]-4 °F

max. [°F]158 °F

RemarkA derating of 3 K/1 000 m has to be applied to the Control Units from an installation altitude of 1 000 m above sea level

Ambient temperature during storage/transportation

Storage, min.-40 °C

Storage, max.70 °C

Storage, min. [°F]-40 °F

Storage, max. [°F]158 °F

Relative humidity

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3No

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

Coatings for printed circuit board assemblies acc. to EN 61086Yes; Class 2 for high reliability

Military testing according to MIL-I-46058C, Amendment 7Yes; Discoloration of coating possible during service life

Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AYes; Conformal coating, Class A

Connection method

Connectable conductor cross-section for signal line, min.0 mm²

Connectable conductor cross-section for signal line, max.0 mm²

Connectable conductor cross-section for AWG cables, min.0

Connectable conductor cross-section for AWG cables, max.0

Dimensions

Width49 mm

Height48 mm
