How can I get a price quote for Siemens 5WG1525-2AB13?

You can request a fast quote for Siemens 5WG1525-2AB13 from Yılsa Engineering. Reference part number CEY-8EF3B02F8A6A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5WG1525-2AB13 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5WG1525-2AB13 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5WG1525-2AB13?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

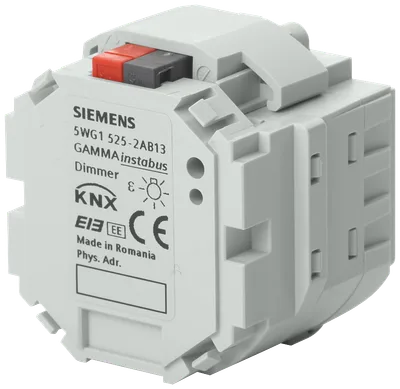

Siemens 5WG1525-2AB13

UP 525/13 - KNX Universal dimmer 1 x AC 230 V, 10...250 VA. One output for switching and dimming resistive, inductive or capacitive loads Automatic adjustment to leading edge or trailing edge control, depending on the type of load Rated operational voltage AC 230 V Rated frequency 50...60 Hz Rated power at +35°C ambient temperature: 10...250 VA Electronic protection of the output against overload, short circuit and temperature rise Screwless terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5...2.5 mm² Bus-powered electronics Integrated bus coupling units, bus connection via bus terminal For insertion in flush-mounting switch and socket boxes 60 mm in diameter and 60 mm deep

SiemensMFR # 5WG1525-2AB13SKU # CEY-8EF3B02F8A6A
