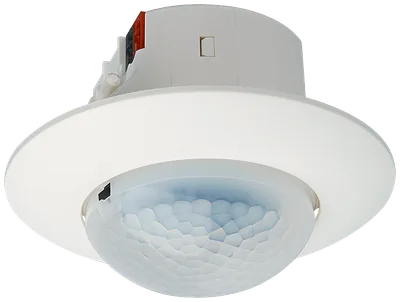

Siemens 5WG1258-2EB22

About This Product

UP 258E22 - KNX Presence Detector / Motion detector with constant light level control. Passive infrared detector for ceiling mounting indoors Optional blinding of parts of the detection area Adjustable sensitivity of detection Mixed light measurement Cyclical sending or sending on change of value of the measured brightness value (Lux) Integrated two-position controller Constant light level control for a main group of luminaries and up to four additional groups of luminaries Lighting control configurable as fully automatic or semi-automatic Motion detection for three function blocks (presence detector, motion detector, and HVAC detector) 2 per function block selectable functions (A, B) on start of the presence detection and two per function block selectable functions (C, D) on expiration of the presence detection Configurable delay of 0...255 seconds between sending of function A and B respectively C and D Selection per function (A, B, C, D) switching On/Off, 8-bit value, selectable 8-bit value, 16-bit value, temperature value, brightness value, 8-bit scene control Blocking object per function block Per function block configurable overshoot time, in each case configurable as a fixed time, as switchable between two times via the bus, or settable to a value via the bus Parallel operation of several presence detectors without additional logic module Integrated IR receiver and IR decoder for IR remote controls with six pairs of pushbuttons Functions of the IR remote control selectable per pair of pushbuttons or per each single pushbutton of a button pair Per pushbutton selectable function toggle, switching on, switching off, 8-bit scene recall, 8-bit value, 16-bit value, temperature value, brightness value For each pair of pushbuttons selectable function switching On/Off, 2-button dimming with stop telegram, 2-button solar protection control, variable 8-bit value, 8-bit scene control Blocking object for IR decoder Test mode for easy start-up LED for display of detected movements in test mode, to be configured using ETS Integrated bus coupling unit, bus connection via bus terminal, Power supply over the bus line Ceiling mounting on a flush-mounting box with 60 mm diameter and min. 40 mm depth or in a housing for surface-mounting AP 258E01 (to be ordered separately) Monitoring motion range horizontal 360°, vertical approx. 105° Monitoring motion of an area of diameter 8 m (depending on mounting/room height) Programming button reachable from front
