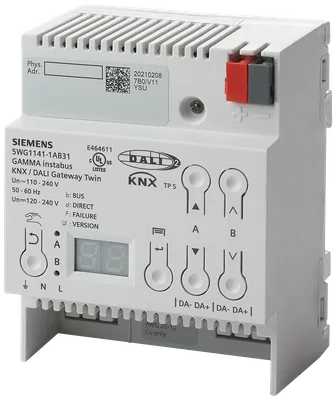

Siemens 5WG1141-1AB31

About This Product

N 141/31 - KNX/DALI Gateway Twin. Communication via KNX EIB with electronic ballasts (ECG) with a DALI interface Two DALI outputs with DALI-2 certification acc. to IEC 62386-101 and 103, each for communication with up to 64 DALI ballasts Integrated power supply with input voltage AC 110...240 V, 50...60 Hz or DC 120...240 V for powering the gateway electronics and DALI output Support of ECGs Type 0, 1, 2, 3, 4, 5, 6, 7 and 8 according to EN 62386 edition 1 as well as edition 2 (DALI-2) Maximum DALI output voltage of 19 V, short circuit resistant Incorrect voltage detection during commissioning, whether incorrect power line is connected to a DALI output LED display for displaying operation mode and error messages Pushbutton for switching between bus and direct operating mode One pair of pushbuttons for switching On/Off of all connected DALI ballasts One LED per DALI output for status signal of all connected luminaries in direct mode Configurable behaviour for bus failure (stand-alone mode) Control (switching, dimming, set dimming value) of all connected luminaries together in broad-cast mode Status signal and display of lamp and ECG failure per group and per DALI device One or two level timer Integrated scene control for up to 32 scenes Assignment of DALI ECG to groups and test option for ECG, groups and scenes via ETS during commissioning Possibility to reintegrate defective DALI ECG without software Integrated bus coupling unit with only half a standard bus load Bus connection via bus terminal Mounting on DIN rail EN 60715-TH35-7.5

Siemens 5WG1141-1AB31

• Genuine, certified Siemens product
• Fast sourcing through a worldwide supply network
• Product selection and compatibility support from our technical team
• Equivalent and alternative product suggestions
• Quotation and lead time tailored to your request
