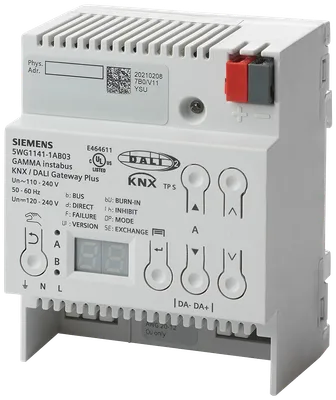

Siemens 5WG1141-1AB03

About This Product

N 141/03 - KNX/DALI Gateway plus, 1 channel. With emergency lighting, with sensors For communication via KNX with electronic ballasts (ECG) with a DALI interface DALI output with DALI-2 certification acc. to IEC 62386-101 and -103, for communication with up to 64 DALI ECG Ed.1 and DALI-2 and at least 10 (from which max. 8 movement detectors) DALI sensors (currently only Osram and Siemens DALI sensors are supported) Integrated power supply with input voltage AC 110-240 V, 50-60 Hz or DC 120-240 V for powering the gateway electronics and DALI output Maximum DALI output voltage of 19 V, short circuit resistant Incorrect voltage detection during commissioning if incorrect power line is connected to a DALI output LED display for displaying operation mode and error messages Pushbutton for switching between bus and direct operating mode One pair of pushbuttons for switching On/Off of all connected DALI ECG One LED per DALI output for status signal of all connected luminaries in direct mode Configurable behaviour for bus failure (stand-alone mode) Configurable pre-loaded applications without software ETS Scheduler for day, week, date with astro function Control of all connected luminaries together in broadcast mode Status signal and display of lamp and ECG failure per group and per DALI device Transformation of dimming commands into a temporary setpoint adjustment for ECG with integrated constant light level control and directly connected light level sensor One or two level timer Up to 4 integrated one time or cyclical control of repeatable sequences or color effects Distinction between self-contained emergency luminaries with one or two DALI devices Starting the self-conducted testing of each individual inverter and reporting the test result via bus or save in a persistent memory with memory space monitoring over object Per channel up to 6 stand-by-area analysis for activation of switch actuators Scene control for up to 16 scenes per channel 16 integrated 2-level-controller for brightness control and 16 constant light level controller for main luminaries group and up to 4 additional luminaries groups Assignment of a CIN to a DALI ECG Reintegration defective DALI ECG without ETS Assignment of DALI ECG to groups and test option for ECG, groups, scenes and effects via ETS Assignment of DALI sensors and test option of sensors via ETS Integrated bus coupling unit with only half a standard bus load, bus connection via bus terminal Mounting on DIN rail EN 60715-TH35-7.5
