How can I get a price quote for Siemens 5UB1565?

You can request a fast quote for Siemens 5UB1565 from Yılsa Engineering. Reference part number YLSMVYMFSMJS0TC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5UB1565 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5UB1565 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5UB1565?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

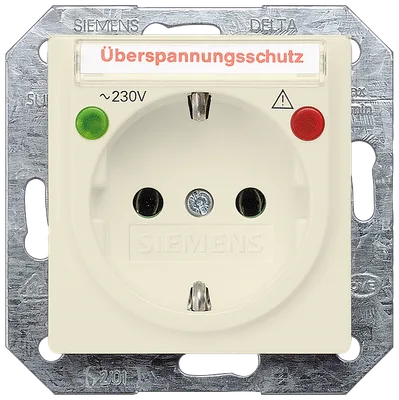

Siemens 5UB1565

DELTA i-system electrical white SCHUKO socket outlet 10/16 A 250 V With screwless Connection terminals with overvoltage protection inscription, field, Function displays cover plate 55 x 55 mm

SiemensMFR # 5UB1565SKU # YLSMVYMFSMJS0TC

product brand nameDELTA

product designationSCHUKO socket outlet

design of the productSCHUKO socket outlet CEE 7/3 (type F)

cover versioncentral plate

design of the special power supply unitwithout special current supply

design of the phase tapNo

Have questions?Chat on WhatsApp

About This Product

DELTA i-system electrical white SCHUKO socket outlet 10/16 A 250 V With screwless Connection terminals with overvoltage protection inscription, field, Function displays cover plate 55 x 55 mm

Siemens 5UB1565

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameDELTA

product designationSCHUKO socket outlet

design of the productSCHUKO socket outlet CEE 7/3 (type F)

cover versioncentral plate

design of the special power supply unitwithout special current supply

design of the socket according to VDE 0620 for severe conditionsNo

design of the phase tapNo

General technical data

marking of socket outletwithout imprint

mounting typefixing with claw and screw

surface processingothers

materialthermoplastic

Supply voltage

operating voltage rated value250 V

supply voltage frequency rated value50 Hz

Protection class

protection class IPIP20

Main circuit

operational current rated value16 A

Appearance

RAL color number (similar)1 013

colorelectric white

Product details

ejection equipmentNo

labeling fieldYes

increased touch protectionNo

residual current deviceNo

miniature fuseNo

integrated functional lightingYes

integrated light sourceYes

integrated orientation lightingNo

hinged lidNo

product feature lockableNo

product feature halogen-freeYes

product feature transparentNo

Product function

socket selectableNo

overvoltage protectionYes

Number

number of units1

number of sockets switchable0

Connections

arrangement of contacts diagonalNo

type of electrical connectionplug terminal

Mechanical Design

height70 mm

width70 mm

depth45 mm

fastening methodflush mounting

Net Weight110 g

material of the enclosureplastic

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.284 kg

global warming potential [CO2 eq] / during operation4.48 kg

global warming potential [CO2 eq] / after end of life0.0001 kg

global warming potential [CO2 eq] / total4.77 kg

Accessories 27

Genuine accessories that can be used with the Siemens 5UB1565 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5TG2498	Aksesuar
5UH1086	Aksesuar
5UH1085	Aksesuar
5UH1084	Aksesuar
5UH1300	Bileşen
5TG2584-1	Seçmeli zorunlu ürün
5TG2584-0	Seçmeli zorunlu ürün
5TG2583-2	Seçmeli zorunlu ürün
5TG2583-1	Seçmeli zorunlu ürün
5TG2583-0	Seçmeli zorunlu ürün
5TG2582-2	Seçmeli zorunlu ürün
5TG2582-1	Seçmeli zorunlu ürün
5TG2582-0	Seçmeli zorunlu ürün
5TG2581-1	Seçmeli zorunlu ürün
5TG2581-0	Seçmeli zorunlu ürün
5TG1205-4	Seçmeli zorunlu ürün
5TG2584-2	Seçmeli zorunlu ürün
5TG1204-4	Seçmeli zorunlu ürün
5TG1202-4	Seçmeli zorunlu ürün
5TG1201-4	Seçmeli zorunlu ürün
5TG1115-3	Seçmeli zorunlu ürün
5TG1114-3	Seçmeli zorunlu ürün
5TG1113-3	Seçmeli zorunlu ürün
5TG1112-3	Seçmeli zorunlu ürün
5TG1111-3	Seçmeli zorunlu ürün
5TG1203-4	Seçmeli zorunlu ürün
5TG2585-0	Seçmeli zorunlu ürün
