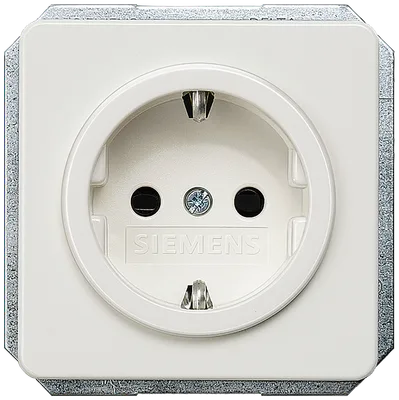

Siemens 5UB1405-0KK

DELTA profil, titanium white SCHUKO socket outlet 10/16 A 250 V With screwless Connection terminals with increased touch protection Cover plate 65x 65 mm without claws

SiemensMFR # 5UB1405-0KKSKU # CEY-8EF3B03884F8

product brand nameDELTA

product designationSCHUKO socket outlet

design of the productSCHUKO socket outlet CEE 7/3 (type F)

cover versioncentral plate

design of the special power supply unitwithout special current supply

design of the phase tapNo

Have questions?Chat on WhatsApp

About This Product

DELTA profil, titanium white SCHUKO socket outlet 10/16 A 250 V With screwless Connection terminals with increased touch protection Cover plate 65x 65 mm without claws

Siemens 5UB1405-0KK

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameDELTA

product designationSCHUKO socket outlet

design of the productSCHUKO socket outlet CEE 7/3 (type F)

cover versioncentral plate

design of the special power supply unitwithout special current supply

design of the socket according to VDE 0620 for severe conditionsNo

design of the phase tapNo

General technical data

marking of socket outletwithout imprint

mounting typefixing with screw

surface processingothers

materialthermoplastic

Supply voltage

operating voltage rated value250 V

supply voltage frequency rated value50 Hz

Protection class

protection class IPIP20

Main circuit

operational current rated value16 A

Appearance

RAL color number (similar)9 010

colortitanium white

Product details

ejection equipmentNo

labeling fieldNo

increased touch protectionYes

residual current deviceNo

miniature fuseNo

integrated functional lightingNo

integrated light sourceNo

integrated orientation lightingNo

hinged lidNo

product feature lockableNo

product feature halogen-freeYes

product feature transparentNo

Product function

socket selectableNo

overvoltage protectionNo

Number

number of units1

number of sockets switchable0

Connections

arrangement of contacts diagonalNo

type of electrical connectionplug terminal

Mechanical Design

height70 mm

width70 mm

depth45 mm

fastening methodflush mounting

Net Weight77 g

material of the enclosureplastic

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.284 kg

global warming potential [CO2 eq] / during operation4.48 kg

global warming potential [CO2 eq] / after end of life0.0001 kg

global warming potential [CO2 eq] / total4.77 kg

Accessories 13

Genuine accessories that can be used with the Siemens 5UB1405-0KK motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5UH1084	Aksesuar
5UH1085	Aksesuar
5UH1086	Aksesuar
5UH1204	Aksesuar
5TG1801	Seçmeli zorunlu ürün
5TG1803	Seçmeli zorunlu ürün
5TG1804	Seçmeli zorunlu ürün
5TG1811	Seçmeli zorunlu ürün
5TG1812	Seçmeli zorunlu ürün
5TG1813	Seçmeli zorunlu ürün
5TG1814	Seçmeli zorunlu ürün
5TG1815	Seçmeli zorunlu ürün
5TG1873	Seçmeli zorunlu ürün
