How can I get a price quote for Siemens 5UB1368?

You can request a fast quote for Siemens 5UB1368 from Yılsa Engineering. Reference part number YLSC8FHOGF1HUD. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5UB1368 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5UB1368 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5UB1368?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

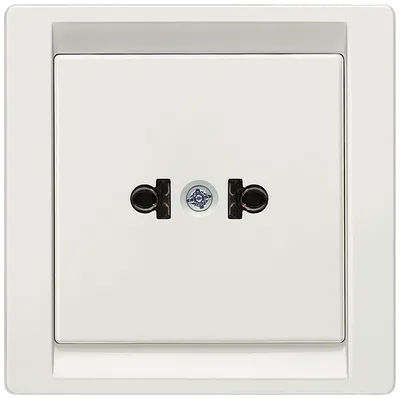

Siemens 5UB1368

DELTA style, titanium white Socket outlet 15A 125V American standard C73 cover plate 68 x 68 mm

SiemensMFR # 5UB1368SKU # YLSC8FHOGF1HUD

product brand nameDELTA

product designationSocket outlet

design of the productAmerican National Standard

cover versioncentral plate

design of the special power supply unitwithout special current supply

design of the phase tapNo

Have questions?Chat on WhatsApp

About This Product

DELTA style, titanium white Socket outlet 15A 125V American standard C73 cover plate 68 x 68 mm

Siemens 5UB1368

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameDELTA

product designationSocket outlet

design of the productAmerican National Standard

cover versioncentral plate

design of the special power supply unitwithout special current supply

design of the socket according to VDE 0620 for severe conditionsNo

design of the phase tapNo

General technical data

marking of socket outletwithout imprint

mounting typefixing with claw and screw

surface processingothers

materialthermoplastic

Supply voltage

operating voltage rated value125 V

supply voltage frequency rated value50 Hz

Protection class

protection class IPIP20

Main circuit

operational current rated value15 A

Appearance

RAL color number (similar)9 010

colortitanium white

Product details

ejection equipmentNo

labeling fieldNo

increased touch protectionNo

residual current deviceNo

miniature fuseNo

integrated functional lightingNo

integrated light sourceNo

integrated orientation lightingNo

hinged lidNo

product feature lockableNo

product feature halogen-freeYes

product feature transparentNo

Product function

socket selectableNo

overvoltage protectionNo

Number

number of units1

number of sockets switchable0

Connections

arrangement of contacts diagonalNo

type of electrical connectionscrew-type terminal

Mechanical Design

height70 mm

width70 mm

depth45 mm

fastening methodflush mounting

Net Weight82 g

material of the enclosureplastic

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.284 kg

global warming potential [CO2 eq] / during operation4.48 kg

global warming potential [CO2 eq] / after end of life0.0001 kg

global warming potential [CO2 eq] / total4.77 kg

Accessories 9

Genuine accessories that can be used with the Siemens 5UB1368 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5TG2498	Aksesuar
5UH1084	Aksesuar
5UH1085	Aksesuar
5UH1086	Aksesuar
5TG1321	Seçmeli zorunlu ürün
5TG1322	Seçmeli zorunlu ürün
5TG1323	Seçmeli zorunlu ürün
5TG1324	Seçmeli zorunlu ürün
5TG1325	Seçmeli zorunlu ürün
