How can I get a price quote for Siemens 5TT4322-2MC?

You can request a fast quote for Siemens 5TT4322-2MC from Yılsa Engineering. Reference part number YLSVZI5MFZ5W5. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5TT4322-2MC in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5TT4322-2MC genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5TT4322-2MC?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

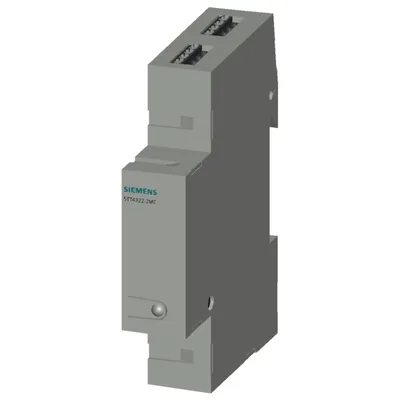

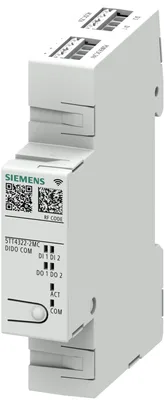

Siemens 5TT4322-2MC

digital input/output module 5TT4 COM with communication function, 24 V DC, 2 inputs 24 V AC/DC incl. logic operations; 2 outputs 230 V AC; please consider radio license! list of countries: see certificates

SiemensMFR # 5TT4322-2MCSKU # YLSVZI5MFZ5W5

product brand nameSENTRON

product designationDigital input/output module

display version LEDYes

latching relay designelectronic switch

electrical endurance (operating cycles)100 000

overvoltage categoryIII

Have questions?Chat on WhatsApp

About This Product

Siemens 5TT4322-2MC

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationDigital input/output module

display version LEDYes

latching relay designelectronic switch

General technical data

electrical endurance (operating cycles)100 000

galvanic isolation between magnet coil and contactYes

overvoltage categoryIII

degree of pollution2

Voltage

type of voltage of the operating voltageDC

surge voltage resistance rated value4 kV

Supply voltage

1 at DC rated value24 V

at DC rated value minimum19.2 V

at DC rated value maximum28.8 V

Protection class

protection class IPIP20

Breaking Capacity

for fluorescent lamp load with DUO circuit1 000 V·A

for fluorescent lamp load with parallel compensation500 V·A

for uncompensated fluorescent lamp load1 000 V·A

at AC at 250 V rated value5 A

at cos phi 0.65 A

at DC at 30 V rated value5 A

rated value5 A

switching capacity active power with incandescent lamp load2 000 W

Dissipation

at 16 A per contact rated value0.75 W

of magnet coil with pulse rated value0.2 W

Product function

direct operationYes

communication functionYes

other measurement functionYes

display version as status display of the inputs/outputsLED green

at AC rated value24 V

at DC rated value24 V

for signal <1> at AC minimum12 V

for signal <1> at DC minimum12 V

with signal <0> at AC maximum5 V

with signal <0> at DC maximum5 V

initial value for signal<1>-recognition10 mA

full-scale value for signal<0> recognition0.8 mA

number of digital inputs2

number of digital outputs2

pulse duration minimum150 ms

at AC-1 at 250 V rated value5 A

at DC-1 at 30 V rated value5 A

voltage of the output relay at AC maximum250 V

voltage of the output relay at DC maximum30 V

Number

number of terminals12

Connections

type of terminals screwlessyes

stripped length8 mm

minimum0.2 mm²

maximum1.5 mm²

minimum0.2 mm²

maximum1.5 mm²

type of electrical connectionspring-loaded terminal (push-in)

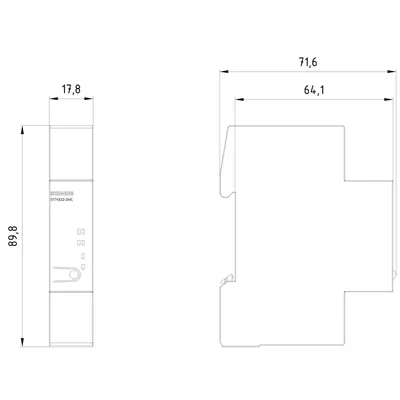

Mechanical Design

mounting height90 mm

installation depth70 mm

number of modular width units1

fastening methodDIN rail

mounting positionany

Net Weight60 g

Environmental conditions

minimum-20 °C

maximum65 °C

ambient temperature with relative humidity 95% according to DIN 5001565 °C
