How can I get a price quote for Siemens 5TA2155-0KK?

You can request a fast quote for Siemens 5TA2155-0KK from Yılsa Engineering. Reference part number CEY-8EF3B0302A5A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5TA2155-0KK in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5TA2155-0KK genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5TA2155-0KK?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

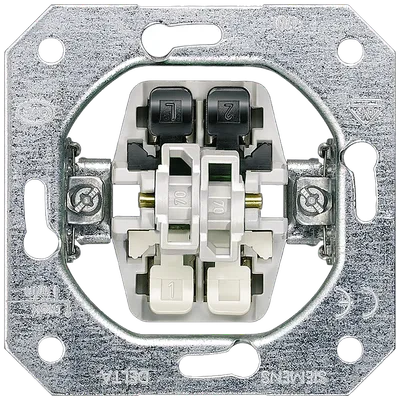

Siemens 5TA2155-0KK

DELTA switch device insert FM, two-circuit switch without claws 10A 250V

SiemensMFR # 5TA2155-0KKSKU # CEY-8EF3B0302A5A

product brand nameDELTA

type of light sourceWithout lighting

type of compositionbasic element

design of the actuating elementrocker/button

type of switchseries switch

mounting typeflush mounting

Have questions?Chat on WhatsApp

About This Product

DELTA switch device insert FM, two-circuit switch without claws 10A 250V

Siemens 5TA2155-0KK

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameDELTA

type of installation switch rotary switchNo

type of light sourceWithout lighting

type of compositionbasic element

design of the actuating elementrocker/button

General technical data

type of switchseries switch

mounting typeflush mounting

surface processingothers

materialothers

Supply voltage

operating voltage rated value250 V

Protection class

protection class IPIP20

Breaking Capacity

switching capacity current10 A

Main circuit

operational current rated value10 A

Appearance

appearancenot applicable

colormiscellaneous

Product details

labeling fieldNo

signaling contactNo

pushbutton switchNo

product feature halogen-freeYes

Number

number of actuating rockers2

Connections

type of electrical connectionPlug-in terminal

Mechanical Design

height70 mm

fastening methodscrew mounting

Net Weight47 g

material of the enclosuremetal

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.353 kg

global warming potential [CO2 eq] / during operation4.49 kg

global warming potential [CO2 eq] / after end of life0.0164 kg

global warming potential [CO2 eq] / total4.86 kg

Accessories 35

Genuine accessories that can be used with the Siemens 5TA2155-0KK motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5TG6282	Seçmeli zorunlu ürün
5TG6212	Seçmeli zorunlu ürün
5TG6232	Seçmeli zorunlu ürün
5TG6252	Seçmeli zorunlu ürün
5TG6204	Seçmeli zorunlu ürün
5TG7145	Seçmeli zorunlu ürün
5TG7145-1	Seçmeli zorunlu ürün
5TG7157	Seçmeli zorunlu ürün
5TG7157-1	Seçmeli zorunlu ürün
5TG7158	Seçmeli zorunlu ürün
5TG7158-1	Seçmeli zorunlu ürün
5TG6283	Seçmeli zorunlu ürün
5TG7805	Seçmeli zorunlu ürün
5TG7818	Seçmeli zorunlu ürün
5TG7925	Seçmeli zorunlu ürün
5TG7937	Seçmeli zorunlu ürün
5TG7938	Seçmeli zorunlu ürün
5TG7145-0AC00	Seçmeli zorunlu ürün
5TG7145-0AC01	Seçmeli zorunlu ürün
5TG7817	Seçmeli zorunlu ürün
5TG7145-0CH00	Seçmeli zorunlu ürün
5TG6274	Seçmeli zorunlu ürün
5TG6205	Seçmeli zorunlu ürün
5TG6213	Seçmeli zorunlu ürün
5TG6224	Seçmeli zorunlu ürün
5TG6225	Seçmeli zorunlu ürün
5TG6225-0	Seçmeli zorunlu ürün
5TG6275	Seçmeli zorunlu ürün
5TG6225-1	Seçmeli zorunlu ürün
5TG6233	Seçmeli zorunlu ürün
5TG6244	Seçmeli zorunlu ürün
5TG6245	Seçmeli zorunlu ürün
5TG6253	Seçmeli zorunlu ürün
5TG6225-2	Seçmeli zorunlu ürün
5TG7145-0CH01	Seçmeli zorunlu ürün
