How can I get a price quote for Siemens 5SV8706-0KK?

You can request a fast quote for Siemens 5SV8706-0KK from Yılsa Engineering. Reference part number CEY-8EF3B03896C5. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SV8706-0KK in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SV8706-0KK genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SV8706-0KK?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

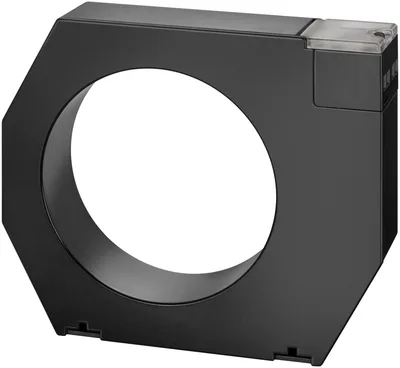

Siemens 5SV8706-0KK

Summation current transformer 210 mm

SiemensMFR # 5SV8706-0KKSKU # CEY-8EF3B03896C5

product brand nameSENTRON

product designationsummation current transformer

design of the producttype A

residual current (Idn) minimum300 mA

wire length maximum10 m

surge voltage resistance rated value4 kV

Have questions?Chat on WhatsApp

About This Product

Siemens 5SV8706-0KK (Summation current transformer 210 mm) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 5SV8706-0KK — price, stock availability and technical specifications.

Siemens 5SV8706-0KK

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationsummation current transformer

design of the producttype A

residual current (Idn) minimum300 mA

internal diameter of summation current transformer210 mm

wire length maximum10 m

protection class IP at connection all terminalsIP20

type of voltage of the operating voltage for actuationAC

surge voltage resistance rated value4 kV

maximum720 V

Main circuit

minimum50 Hz

maximum60 Hz

operational current rated value630 A

Control current

at AC at 50 Hz rated value maximum720 V

at AC at 60 Hz rated value maximum720 V

Suitability

suitability for usefor AC power system

Product function

product function error memoryNo

Connections

type of connectable conductor cross-sections0.13 mm² 2.1 mm²

type of electrical connectionscrew terminal

Mechanical Design

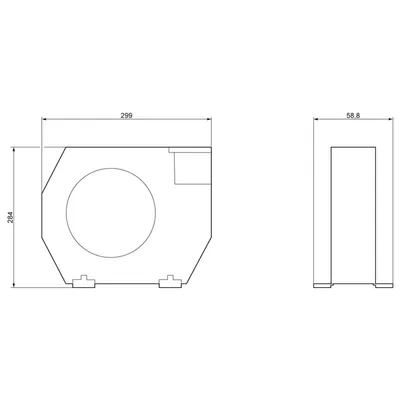

height33 mm

width299 mm

depth284 mm

Net Weight1.78 kg

Environmental conditions

influence of the surrounding temperatureMax. 95% humidity

minimum-10 °C

maximum50 °C

minimum-20 °C

maximum70 °C

Certificates

reference code according to IEC 81346-2T

Accessories 2

Genuine accessories that can be used with the Siemens 5SV8706-0KK motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
