How can I get a price quote for Siemens 5SV8200-6KK?

You can request a fast quote for Siemens 5SV8200-6KK from Yılsa Engineering. Reference part number CEY-8EF3B0300242. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SV8200-6KK in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SV8200-6KK genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SV8200-6KK?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 5SV8200-6KK

Differential current monitoring device Digital 4-channel, Type A IDN 0.03 A 30 A 0.02 10 sec. (INS, SEL)

SiemensMFR # 5SV8200-6KKSKU # CEY-8EF3B0300242

product brand nameSENTRON

product designationresidual current monitor

design of the productDigital, type A

initial value0.02 s

full-scale value10 s

minimum50 Hz

Have questions?Chat on WhatsApp

About This Product

Differential current monitoring device Digital 4-channel, Type A IDN 0.03 A 30 A 0.02 10 sec. (INS, SEL)

Siemens 5SV8200-6KK

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationresidual current monitor

design of the productDigital, type A

initial value0.02 s

full-scale value10 s

minimum50 Hz

maximum60 Hz

protection class IP at connection all terminalsIP20

type of connectable summation current transformer5SV8700-0KK, 5SV8701-0KK, 5SV8702-0KK, 5SV8703-0KK, 5SV8704-0KK, 5SV8705-0KK, 5SV8706-0KK

overvoltage categoryIII

degree of pollution2

type of voltage of the operating voltage for actuationAC

rated value minimum184 V

rated value maximum276 V

at AC rated value230 V

protection class IP on the frontIP41

Dissipation

power loss [V∙A] maximum6 V·A

Main circuit

minimum50 Hz

maximum60 Hz

Auxiliary circuit

number of NO contacts for auxiliary contacts5

Relay contacts

switching voltage of relay contacts rated value230 V

switching current of relay contacts rated value6 A

Product function

residual current displayYes

error memoryYes

communication functionNo

Connections

product component removable terminal for main circuitNo

product component removable terminal for auxiliary and control circuitNo

wire length to the summation current transformer10 m

stripped length10 mm

minimum0.13 mm²

maximum2.1 mm²

minimum0.13 mm²

maximum2.1 mm²

minimum0.5 N·m

maximum0.6 N·m

type of connectable conductor cross-sections for AWG cables for supply voltageAWG 26 ... AWG 14

type of electrical connectionscrew terminal

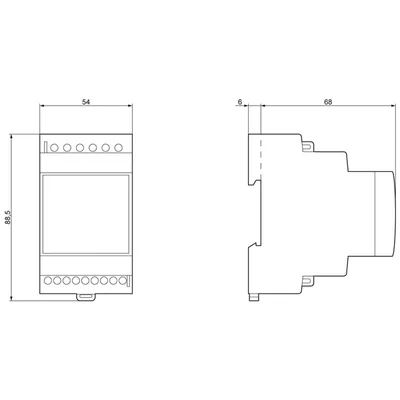

Mechanical Design

height85 mm

width54 mm

depth68 mm

fastening methodDIN rail

Net Weight294 g

Environmental conditions

influence of the surrounding temperatureMax. 95% humidity

minimum-10 °C

maximum50 °C

minimum-20 °C

maximum70 °C

Certificates

reference code according to IEC 81346-2K

Accessories 6

Genuine accessories that can be used with the Siemens 5SV8200-6KK motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5SV8701-2KK	Seçmeli zorunlu ürün
5SV8701-2KP	Seçmeli zorunlu ürün
5SV8702-2KK	Seçmeli zorunlu ürün
5SV8702-2KP	Seçmeli zorunlu ürün
5SV8703-2KK	Seçmeli zorunlu ürün
5SV8704-2KK	Seçmeli zorunlu ürün
