How can I get a price quote for Siemens 5SU1324-7FR06?

You can request a fast quote for Siemens 5SU1324-7FR06 from Yılsa Engineering. Reference part number YLSHIANO0WXUUEZ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SU1324-7FR06 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SU1324-7FR06 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SU1324-7FR06?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

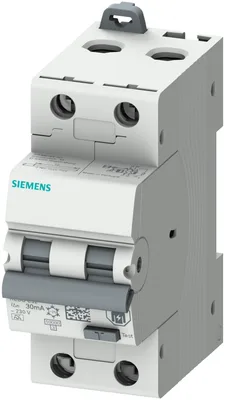

Siemens 5SU1324-7FR06

RCBO, 10 kA, 2-pole type A, 30 mA, C char, In: 06 A Un: 230 V super-resistant

SiemensMFR # 5SU1324-7FR06SKU # YLSHIANO0WXUUEZ

product brand nameSENTRON

product designationRCBO

design of the productSuper resistant K

number of poles2

number of poles with protection2

design of pole2P

Have questions?Chat on WhatsApp

About This Product

RCBO, 10 kA, 2-pole type A, 30 mA, C char, In: 06 A Un: 230 V super-resistant

Siemens 5SU1324-7FR06

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationRCBO

design of the productSuper resistant K

General technical data

number of poles2

number of poles with protection2

design of pole2P

tripping characteristic classC

mechanical service life (operating cycles) typical10 000

overvoltage category3

degree of pollution3

Voltage

type of voltage of the operating voltageAC

insulation voltage (Ui) rated value500 V

surge voltage resistance rated value4 000 V

surge current resistance at (8/20) µs3 kA

tripping fault current rated value30 mA

— at 30 °C rated value6 A

— at 40 °C rated value5.7 A

— at 45 °C rated value5.5 A

— at 50 °C rated value5.3 A

— at 55 °C rated value5.1 A

— at 60 °C rated value5 A

— at 70 °C rated value4.7 A

operational current at AC rated value6 A

residual current typeA

Supply voltage

at AC rated value230/240 V

for testing equipment minimum195 V

operating frequency50/60 Hz

supply voltage frequency rated value50 Hz

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

according to EN 60898 rated value10 kA

according to IEC 60947-2 rated value15 kA

short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value10 kA

rated residual switching capacity (IΔm) according to IEC 61009-14.5 kA

energy limitation class3

Dissipation

for rated value of the current at AC in hot operating state per pole0.53 W

maximum1.1 W

Product details

product feature touch protectionYes

product component neutral conductor switchingYes

product feature halogen-freeNo

Connections

minimum1 mm²

maximum35 mm²

minimum1 mm²

maximum35 mm²

minimum1 mm²

maximum35 mm²

minimum2 N·m

maximum2 N·m

position of power supply cordEither top or bottom

Mechanical Design

height85 mm

width36 mm

depth72 mm

installation depth70 mm

number of modular width units2

mounting positionany

Net Weight250 g

Environmental conditions

influence of the surrounding temperatureMax. 95% humidity

minimum-25 °C

maximum40 °C

minimum-40 °C

maximum70 °C

number of test cycles for environmental testing according to IEC 60068-2-3028
