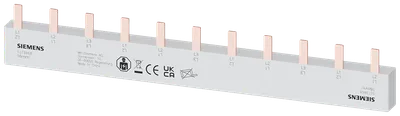

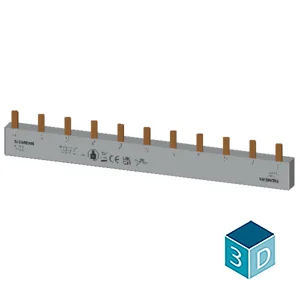

Siemens 5ST3868

pin busbar, 16 mm2 connection 3P 1x RCCB N left+3P + 8x MCB 1P safe to touch 11 MW fixed length

SiemensMFR # 5ST3868SKU # YLS8RB6ASSWFVRL

product brand nameSENTRON

product designationPin busbar

design of the product(N) + 3PH + 8x 1PH

design of the phase tapL1/L2/L3

compatibilityfor 8 MCBs 1P with 1 RCCB 3P+N, N left

design of pole3 poles

Have questions?Chat on WhatsApp

About This Product

pin busbar, 16 mm2 connection 3P 1x RCCB N left+3P + 8x MCB 1P safe to touch 11 MW fixed length

Siemens 5ST3868

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product(N) + 3PH + 8x 1PH

design of the phase tapL1/L2/L3

General technical data

compatibilityfor 8 MCBs 1P with 1 RCCB 3P+N, N left

design of pole3 poles

phase number3

operational current rated value80 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorNo

suitability for useRCCB 4P N left

colorlight grey

Product details

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutNo

number of devices suitable for fitting11

type of electrical connectionPin

Mechanical Design

module width18 mm

height19 mm

width10 mm

length196 mm

number of modular width units11

cross-section16 mm²

angle of the pin of busbar0°

Net Weight100 g

Accessories 10

Genuine accessories that can be used with the Siemens 5ST3868 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3855	Aksesuar
5ST3768	Aksesuar
5ST3768-3	Aksesuar
5ST3768-4	Aksesuar
5ST3768-5	Aksesuar
5ST3794-0	Aksesuar
5ST3793-0	Aksesuar
5ST3793-1	Aksesuar
5ST3793-2	Aksesuar
5ST3794-1	Aksesuar
