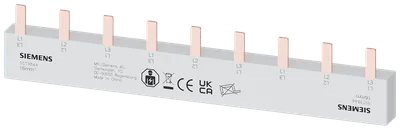

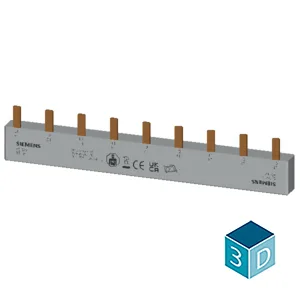

Siemens 5ST3844

pin busbar, 16 mm2 connection 3P 3x MCB 3P safe to touch 9 MW fixed length

SiemensMFR # 5ST3844SKU # YLST7AMNPFYRGMJ

product brand nameSENTRON

product designationPin busbar

design of the product3x 3PH

design of the phase tapL1/L2/L3

compatibilityfor 3 MCBs 3P

design of pole3 poles

Have questions?Chat on WhatsApp

About This Product

pin busbar, 16 mm2 connection 3P 3x MCB 3P safe to touch 9 MW fixed length

Siemens 5ST3844

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product3x 3PH

design of the phase tapL1/L2/L3

General technical data

compatibilityfor 3 MCBs 3P

design of pole3 poles

phase number3

operational current rated value80 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorNo

colorlight grey

Product details

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutNo

number of devices suitable for fitting9

type of electrical connectionPin

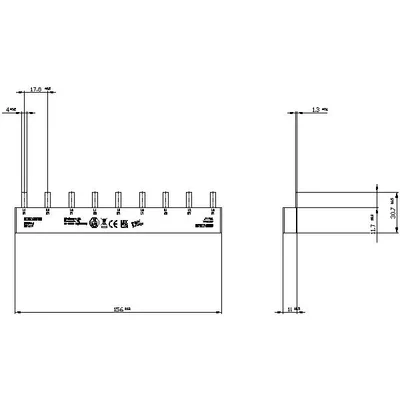

Mechanical Design

module width18 mm

height19 mm

width11 mm

length156 mm

number of modular width units9

cross-section16 mm²

angle of the pin of busbar0°

Net Weight82 g

Accessories 10

Genuine accessories that can be used with the Siemens 5ST3844 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3855	Aksesuar
5ST3768	Aksesuar
5ST3768-3	Aksesuar
5ST3768-4	Aksesuar
5ST3768-5	Aksesuar
5ST3794-0	Aksesuar
5ST3793-0	Aksesuar
5ST3793-1	Aksesuar
5ST3793-2	Aksesuar
5ST3794-1	Aksesuar
