How can I get a price quote for Siemens 5ST3843?

You can request a fast quote for Siemens 5ST3843 from Yılsa Engineering. Reference part number YLS9YHWX4JJ4Z. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5ST3843 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5ST3843 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5ST3843?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

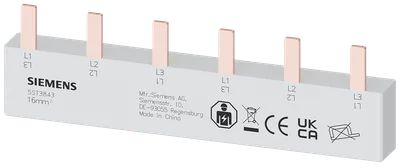

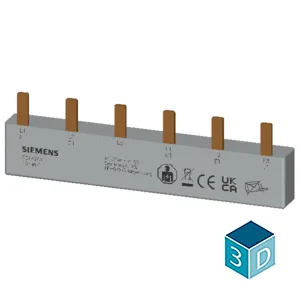

Siemens 5ST3843

pin busbar, 16 mm2 connection 3P 2x MCB 3P safe to touch 6 MW fixed length

SiemensMFR # 5ST3843SKU # YLS9YHWX4JJ4Z

product brand nameSENTRON

product designationPin busbar

design of the product2x 3PH

design of the phase tapL1/L2/L3

compatibilityfor 2 MCBs 3P

design of pole3 poles

Have questions?Chat on WhatsApp

About This Product

pin busbar, 16 mm2 connection 3P 2x MCB 3P safe to touch 6 MW fixed length

Siemens 5ST3843

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product2x 3PH

design of the phase tapL1/L2/L3

General technical data

compatibilityfor 2 MCBs 3P

design of pole3 poles

phase number3

operational current rated value80 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorNo

colorlight grey

Product details

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutNo

number of devices suitable for fitting6

type of electrical connectionPin

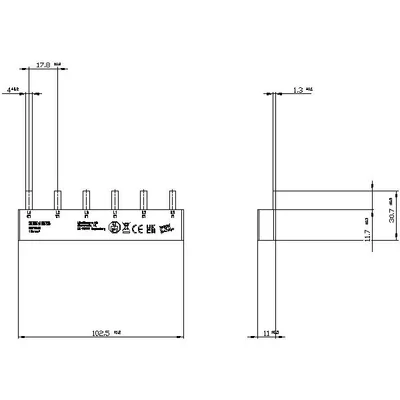

Mechanical Design

module width18 mm

height19 mm

width11 mm

length103 mm

number of modular width units6

cross-section16 mm²

angle of the pin of busbar0°

Net Weight50 g

Accessories 10

Genuine accessories that can be used with the Siemens 5ST3843 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3855	Aksesuar
5ST3768	Aksesuar
5ST3768-3	Aksesuar
5ST3768-4	Aksesuar
5ST3768-5	Aksesuar
5ST3794-1	Aksesuar
5ST3793-1	Aksesuar
5ST3793-2	Aksesuar
5ST3794-0	Aksesuar
5ST3793-0	Aksesuar
