How can I get a price quote for Siemens 5ST3838?

You can request a fast quote for Siemens 5ST3838 from Yılsa Engineering. Reference part number YLSEFNWC8GAJF4D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5ST3838 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5ST3838 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5ST3838?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

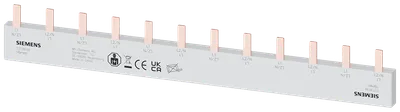

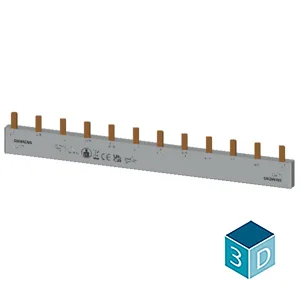

Siemens 5ST3838

pin busbar, 16 mm2 connection 2P/1P+N 6x MCB, RCCB 2P/1P+N safe to touch 12 MW fixed length

SiemensMFR # 5ST3838SKU # YLSEFNWC8GAJF4D

product brand nameSENTRON

product designationPin busbar

design of the product6x (1PH+N)

design of the phase tapL1/L2 oder L1/N

compatibilityfor 6 MCBs (2P/1P+N)

design of pole2P / 1P+N

Have questions?Chat on WhatsApp

About This Product

pin busbar, 16 mm2 connection 2P/1P+N 6x MCB, RCCB 2P/1P+N safe to touch 12 MW fixed length

Siemens 5ST3838

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product6x (1PH+N)

design of the phase tapL1/L2 oder L1/N

General technical data

compatibilityfor 6 MCBs (2P/1P+N)

design of pole2P / 1P+N

phase number2

operational current rated value80 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorYes

suitability for useRCCB 2P N right

colorlight grey

Product details

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutNo

number of devices suitable for fitting6

type of electrical connectionPin

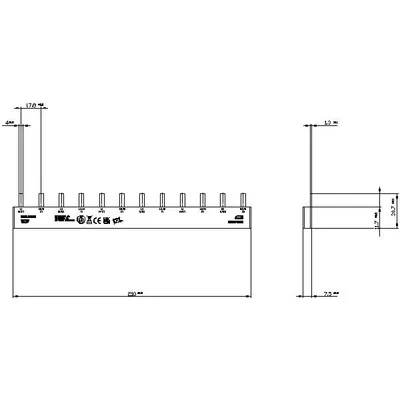

Mechanical Design

module width18 mm

height19 mm

width8 mm

length210 mm

number of modular width units12

cross-section16 mm²

angle of the pin of busbar0°

Net Weight89 g

Accessories 5

Genuine accessories that can be used with the Siemens 5ST3838 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
