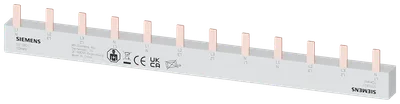

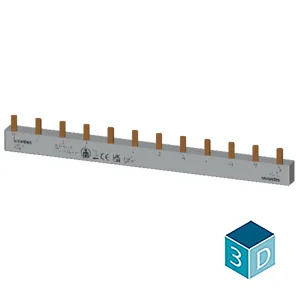

Siemens 5ST3822

pin busbar, 10 mm2 connection 4P/3P+N 3x MCB, RCCB 4P/3P+N safe to touch 12 MW fixed length

SiemensMFR # 5ST3822SKU # YLSGEPIMYEOLY

product brand nameSENTRON

product designationPin busbar

design of the product3x (3PH+N)

design of the phase tapL1/L2/L3/N

compatibilityfor 3 MCBs (4P/3P+N)

design of pole3P+N

Have questions?Chat on WhatsApp

About This Product

pin busbar, 10 mm2 connection 4P/3P+N 3x MCB, RCCB 4P/3P+N safe to touch 12 MW fixed length

Siemens 5ST3822

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product3x (3PH+N)

design of the phase tapL1/L2/L3/N

General technical data

compatibilityfor 3 MCBs (4P/3P+N)

design of pole3P+N

phase number4

operational current rated value63 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorYes

suitability for useRCCB 4P N right

colorlight grey

Product details

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutNo

number of devices suitable for fitting3

type of electrical connectionPin

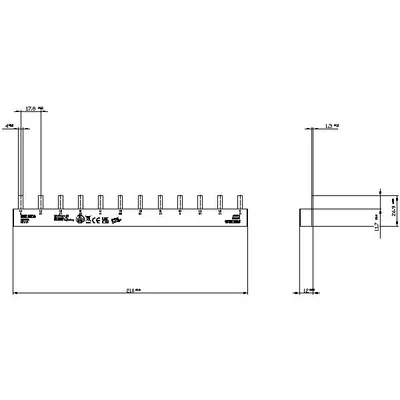

Mechanical Design

module width18 mm

height15 mm

width12 mm

length210 mm

number of modular width units12

cross-section10 mm²

angle of the pin of busbar0°

Net Weight92 g
