How can I get a price quote for Siemens 5ST3770-5?

You can request a fast quote for Siemens 5ST3770-5 from Yılsa Engineering. Reference part number YLSZJWXKB9QGD. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5ST3770-5 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5ST3770-5 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5ST3770-5?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

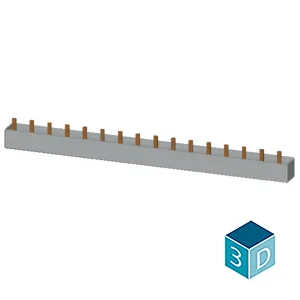

Siemens 5ST3770-5

Pin busbar, 16 mm2 16 MW, 4-phase, can be cut FI 4P N right and 6 MCB 1P+N touch-safe with end caps

SiemensMFR # 5ST3770-5SKU # YLSZJWXKB9QGD

product brand nameSENTRON

product designationPin busbar

design of the product1x (3PH+N) + 6x (1PH+N)

design of pole3P+N

phase number4

operational current rated value80 A

Have questions?Chat on WhatsApp

About This Product

Pin busbar, 16 mm2 16 MW, 4-phase, can be cut FI 4P N right and 6 MCB 1P+N touch-safe with end caps

Siemens 5ST3770-5

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product1x (3PH+N) + 6x (1PH+N)

General technical data

compatibilityfor 6 MCBs 1P+N with 1 RCCB 3P+N, N right

design of pole3P+N

phase number4

operational current rated value80 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorYes

suitability for useRCCB 4P N right

colorlight grey

Product details

product component with end capYes

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutYes

number of devices suitable for fitting7

type of electrical connectionPin

Mechanical Design

module width18 mm

height18 mm

width22 mm

length292 mm

number of modular width units16

cross-section16 mm²

angle of the pin of busbar0°

Net Weight203 g
