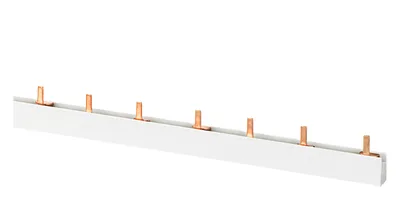

Siemens 5ST3740-2

Pin busbar, 3-phase 10 mm2, 1060mm, gray insulation can be cut for AFDD 5SM602.-2 for FI/LS 2P (3 MW)+AFDD

SiemensMFR # 5ST3740-2SKU # YLSNTWOFKMNRL1

product brand nameSENTRON

product designationPin busbar

design of the product15x (2PH+N)

compatibilityfor RCBO 2P (3 MW) + AFDD

design of pole3 poles

phase number3

Have questions?Chat on WhatsApp

About This Product

Pin busbar, 3-phase 10 mm2, 1060mm, gray insulation can be cut for AFDD 5SM602.-2 for FI/LS 2P (3 MW)+AFDD

Siemens 5ST3740-2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product15x (2PH+N)

General technical data

compatibilityfor RCBO 2P (3 MW) + AFDD

design of pole3 poles

phase number3

operational current rated value63 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorYes

colorlight grey

Product details

product feature attachable arc fault detection deviceYes

product feature insulatedYes

suitable for compact devicesNo

can be cutYes

number of devices suitable for fitting15

type of electrical connectionPin

Mechanical Design

module width18 mm

width14 mm

length1 060 mm

number of modular width units59

cross-section10 mm²

angle of the pin of busbar0°

Net Weight396 g

Accessories 11

Genuine accessories that can be used with the Siemens 5ST3740-2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3750	Aksesuar
5ST3655	Aksesuar
5ST3768	Aksesuar
5ST3768-3	Aksesuar
5ST3768-4	Aksesuar
5ST3768-5	Aksesuar
5ST3793-1	Aksesuar
5ST3793-2	Aksesuar
5ST3794-0	Aksesuar
5ST3793-0	Aksesuar
5ST3794-1	Aksesuar
