Siemens 5ST3730

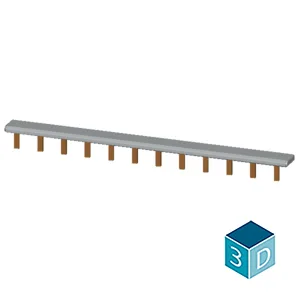

Pin busbar touch-safe, 10 mm2 1-phase, 214 mm long can be cut, with end caps

SiemensMFR # 5ST3730SKU # YLSJTG8AZ1HEPLA

product brand nameSENTRON

product designationPin busbar

design of the product12x 1PH

design of the phase tapL1/L1

compatibilityfor MCBs 1P

design of pole1 pole

Have questions?Chat on WhatsApp

About This Product

Pin busbar touch-safe, 10 mm2 1-phase, 214 mm long can be cut, with end caps

Siemens 5ST3730

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product12x 1PH

design of the phase tapL1/L1

General technical data

compatibilityfor MCBs 1P

design of pole1 pole

phase number1

operational current rated value63 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorNo

colorlight grey

Product details

product component with end capYes

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutYes

number of devices suitable for fitting12

type of electrical connectionPin

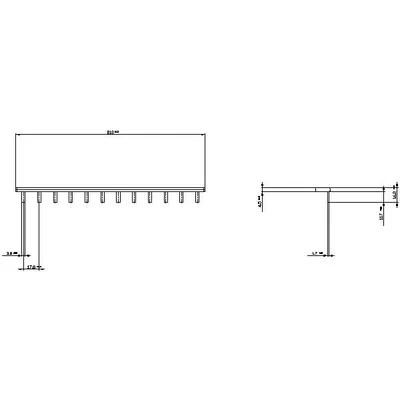

Mechanical Design

module width18 mm

height4 mm

width13 mm

length214 mm

number of modular width units12

cross-section10 mm²

angle of the pin of busbar90°

Net Weight32 g
