How can I get a price quote for Siemens 5ST3724-4?

You can request a fast quote for Siemens 5ST3724-4 from Yılsa Engineering. Reference part number YLSGHFROOQGEPBY. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5ST3724-4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5ST3724-4 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5ST3724-4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

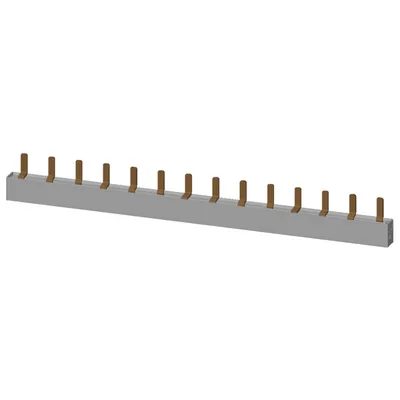

Siemens 5ST3724-4

Pin Busbar, 10mm2 connection: 3p/N (RCCB N-right) 1x RCCB 4-pole +1x MCB 4-pole+ 6x MCB 1-pole touch protected 14 MW fixed length

SiemensMFR # 5ST3724-4SKU # YLSGHFROOQGEPBY

product brand nameSENTRON

product designationPin busbar

design of the product1x (3PH+N) + 1x (3PH+N) + 6x 1PH

design of pole3P+N

phase number4

operational current rated value63 A

Have questions?Chat on WhatsApp

About This Product

Pin Busbar, 10mm2 connection: 3p/N (RCCB N-right) 1x RCCB 4-pole +1x MCB 4-pole+ 6x MCB 1-pole touch protected 14 MW fixed length

Siemens 5ST3724-4

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product1x (3PH+N) + 1x (3PH+N) + 6x 1PH

General technical data

compatibilityfor 1 RCCB 3P+N, 1 MCB 3P+N and 6 MCBs 1P

design of pole3P+N

phase number4

operational current rated value63 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorYes

suitability for useRCCB 4P N right

colorlight grey

Product details

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutNo

number of devices suitable for fitting8

type of electrical connectionPin

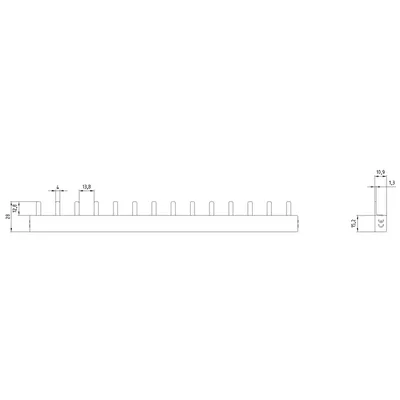

Mechanical Design

module width18 mm

height15 mm

width11 mm

length248 mm

number of modular width units14

cross-section10 mm²

angle of the pin of busbar0°

Net Weight103 g

Accessories 7

Genuine accessories that can be used with the Siemens 5ST3724-4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
