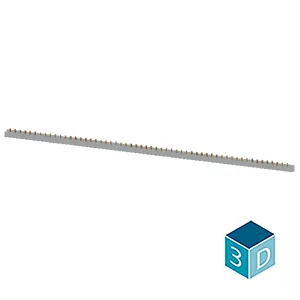

Siemens 5ST3716

Pin busbar touch-safe, 16 mm2 4-phase, 1016 mm long can be cut, without end caps

SiemensMFR # 5ST3716SKU # YLSIZMXRMF2Z9

product brand nameSENTRON

product designationPin busbar

design of the product14x (3PH+N)

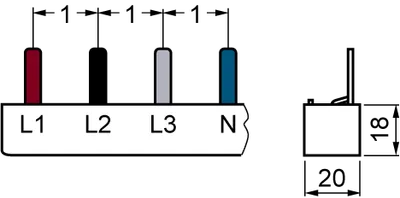

design of the phase tapL1/L2/L3/N

compatibilityfor MCBs 4P or 3P+N

design of pole3P+N

Have questions?Chat on WhatsApp

About This Product

Pin busbar touch-safe, 16 mm2 4-phase, 1016 mm long can be cut, without end caps

Siemens 5ST3716

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product14x (3PH+N)

design of the phase tapL1/L2/L3/N

General technical data

compatibilityfor MCBs 4P or 3P+N

design of pole3P+N

phase number4

operational current rated value80 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorYes

suitability for useRCCB 4P N right

colorlight grey

Product details

product component with end capNo

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutYes

number of devices suitable for fitting14

type of electrical connectionPin

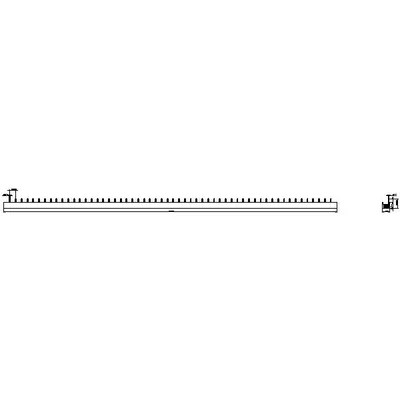

Mechanical Design

module width18 mm

height18 mm

width20 mm

length1 016 mm

number of modular width units56

cross-section16 mm²

angle of the pin of busbar0°

Net Weight798 g
