How can I get a price quote for Siemens 5ST3705-2HG?

You can request a fast quote for Siemens 5ST3705-2HG from Yılsa Engineering. Reference part number CEY-8EF3B0388FF3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5ST3705-2HG in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5ST3705-2HG genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5ST3705-2HG?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

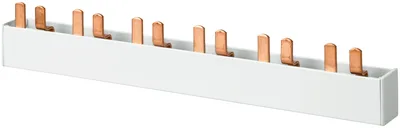

Siemens 5ST3705-2HG

Pin busbar 2-phase, 1016 mm long touch-safe, 25 mm2 without end caps, according to UL 508

SiemensMFR # 5ST3705-2HGSKU # CEY-8EF3B0388FF3

product brand nameSENTRON

product designationPin busbar

design of the product18x 2PH

design of the phase tapL1/L2

compatibilityfor MCBs 2P or fuse holders 14 × 51 mm

design of pole2 poles

Have questions?Chat on WhatsApp

About This Product

Pin busbar 2-phase, 1016 mm long touch-safe, 25 mm2 without end caps, according to UL 508

Siemens 5ST3705-2HG

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product18x 2PH

design of the phase tapL1/L2

General technical data

compatibilityfor MCBs 2P or fuse holders 14 × 51 mm

design of pole2 poles

phase number2

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorNo

colorlight grey

Product details

product component with end capNo

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutYes

number of devices suitable for fitting18

type of electrical connectionPin

Mechanical Design

module width18 mm

height23 mm

width21 mm

length1 000 mm

number of modular width units56

cross-section25 mm²

angle of the pin of busbar0°

Net Weight770 g

standards according to UL508

Accessories 4

Genuine accessories that can be used with the Siemens 5ST3705-2HG motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
