How can I get a price quote for Siemens 5ST3701-3HG?

You can request a fast quote for Siemens 5ST3701-3HG from Yılsa Engineering. Reference part number CEY-8EF3B0388FFB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5ST3701-3HG in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5ST3701-3HG genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5ST3701-3HG?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

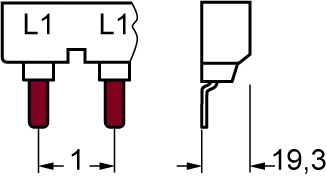

Siemens 5ST3701-3HG

pin busbar, can be cut 18 mm2, 1-phase, 1016 mm , according to UL 508, 480/277 V for MCB 5SJ4...-.HG

SiemensMFR # 5ST3701-3HGSKU # CEY-8EF3B0388FFB

product brand nameSENTRON

product designationPin busbar

design of the product56x 1PH

design of the phase tapL1/L1

compatibilityfor MCBs 1P

design of pole1 pole

Have questions?Chat on WhatsApp

About This Product

pin busbar, can be cut 18 mm2, 1-phase, 1016 mm , according to UL 508, 480/277 V for MCB 5SJ4...-.HG

Siemens 5ST3701-3HG

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product56x 1PH

design of the phase tapL1/L1

General technical data

compatibilityfor MCBs 1P

design of pole1 pole

phase number1

operational current rated value80 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorNo

colorlight grey

Product details

product component with end capNo

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutYes

number of devices suitable for fitting56

type of electrical connectionPin

Mechanical Design

module width18 mm

width19 mm

length1 016 mm

number of modular width units56

cross-section18 mm²

angle of the pin of busbar0°

Net Weight820 g

standards according to UL489, 508

Accessories 5

Genuine accessories that can be used with the Siemens 5ST3701-3HG motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
