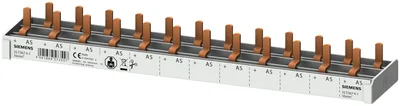

Siemens 5ST3674-1

compact pin busbar, 10 mm2, connection +/AS 12x CBE 1 MW safe to touch 12 MW fixed length

SiemensMFR # 5ST3674-1SKU # YLSECCRYWZWQ0OR

product brand nameSENTRON

product designationPin busbar

design of the product12x 5SY17

design of the phase tap(+)/AS

design of pole(+)+AS

phase number2

Have questions?Chat on WhatsApp

About This Product

compact pin busbar, 10 mm2, connection +/AS 12x CBE 1 MW safe to touch 12 MW fixed length

Siemens 5ST3674-1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product12x 5SY17

design of the phase tap(+)/AS

General technical data

compatibilityfor 12 × CBE (circuit breaker for equipment) 5SY17

design of pole(+)+AS

phase number2

operational current rated value63 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorNo

colorlight grey

Product details

product component with end capYes

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesYes

can be cutYes

number of devices suitable for fitting12

type of electrical connectionPin

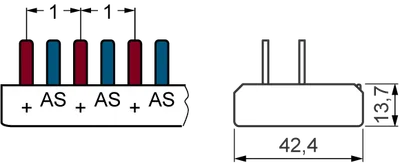

Mechanical Design

module width18 mm

height14 mm

width42 mm

length218 mm

number of modular width units12

cross-section10 mm²

angle of the pin of busbar0°

Net Weight103 g

Accessories 22

Genuine accessories that can be used with the Siemens 5ST3674-1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3655	Aksesuar
5ST3655-0HG	Aksesuar
5ST3768	Aksesuar
5ST3768-3	Aksesuar
5ST3768-4	Aksesuar
5ST3768-5	Aksesuar
5SY1710-4	Uyumlu ürün
5SY1710-2	Uyumlu ürün
5SY1708-4	Uyumlu ürün
5SY1708-2	Uyumlu ürün
5SY1706-4	Uyumlu ürün
5SY1706-2	Uyumlu ürün
5SY1705-4	Uyumlu ürün
5SY1704-2	Uyumlu ürün
5SY1704-4	Uyumlu ürün
5SY1716-2	Uyumlu ürün
5SY1702-4	Uyumlu ürün
5SY1702-2	Uyumlu ürün
5SY1701-4	Uyumlu ürün
5SY1701-2	Uyumlu ürün
5SY1705-2	Uyumlu ürün
5SY1716-4	Uyumlu ürün
