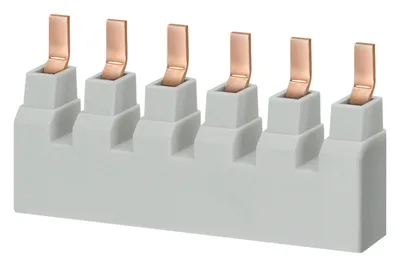

Siemens 5ST3663-2HG

Pin busbar, 16 mm2 connection: 18x 1-phase according to UL 489, 480Y/277V for LS 5SJ4...-.HG

SiemensMFR # 5ST3663-2HGSKU # CEY-8EF3B038900B

product brand nameSENTRON

product designationPin busbar

design of the product18x 1PH

design of the phase tapL1/L1

compatibilityfor 18 MCBs 1P

design of pole1 pole

Have questions?Chat on WhatsApp

About This Product

Pin busbar, 16 mm2 connection: 18x 1-phase according to UL 489, 480Y/277V for LS 5SJ4...-.HG

Siemens 5ST3663-2HG

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product18x 1PH

design of the phase tapL1/L1

General technical data

compatibilityfor 18 MCBs 1P

design of pole1 pole

phase number1

operational current rated value80 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorNo

colorlight grey

Product details

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutNo

number of devices suitable for fitting18

type of electrical connectionPin

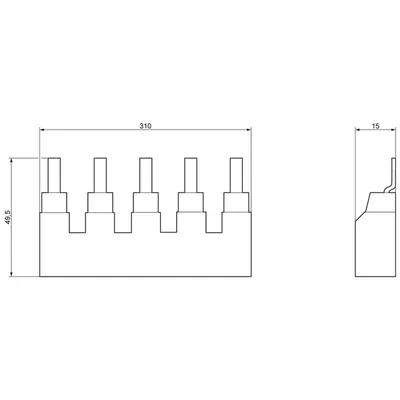

Mechanical Design

module width18 mm

width15 mm

length310 mm

number of modular width units17

cross-section16 mm²

angle of the pin of busbar0°

Net Weight173 g

standards according to UL489, 508
