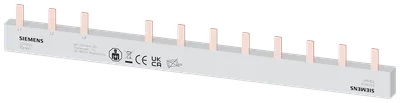

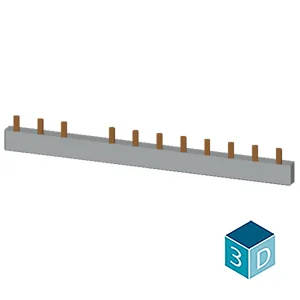

Siemens 5ST3624

Pin busbar, 10 mm2 connection: 3-phase/N+8x phase touch-safe for 1F, 4-pole + 8 CB, 1-pole

SiemensMFR # 5ST3624SKU # YLSWNVA6T5GEV7X

product brand nameSENTRON

product designationPin busbar

design of the product3PH+(N)+ 8x 1PH

compatibilityfor 8 MCBs 1P with 1 RCCB 3P+N, N right

design of pole3 poles

phase number3

Have questions?Chat on WhatsApp

About This Product

Pin busbar, 10 mm2 connection: 3-phase/N+8x phase touch-safe for 1F, 4-pole + 8 CB, 1-pole

Siemens 5ST3624

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product3PH+(N)+ 8x 1PH

General technical data

compatibilityfor 8 MCBs 1P with 1 RCCB 3P+N, N right

design of pole3 poles

phase number3

operational current rated value63 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorYes

suitability for useRCCB 4P N right

colorlight grey

Product details

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutNo

number of devices suitable for fitting9

type of electrical connectionPin

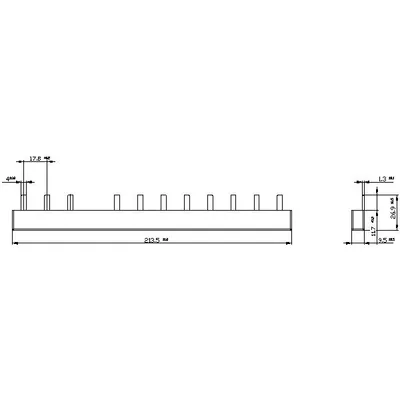

Mechanical Design

module width18 mm

height15 mm

width9 mm

length210 mm

number of modular width units12

cross-section10 mm²

angle of the pin of busbar0°

Net Weight80 g

Accessories 10

Genuine accessories that can be used with the Siemens 5ST3624 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3655	Aksesuar
5ST3768	Aksesuar
5ST3768-3	Aksesuar
5ST3768-4	Aksesuar
5ST3768-5	Aksesuar
5ST3794-0	Aksesuar
5ST3793-0	Aksesuar
5ST3793-1	Aksesuar
5ST3793-2	Aksesuar
5ST3794-1	Aksesuar
