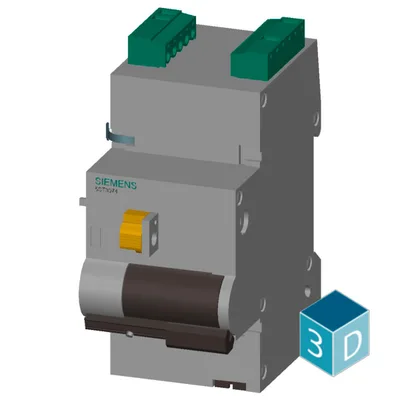

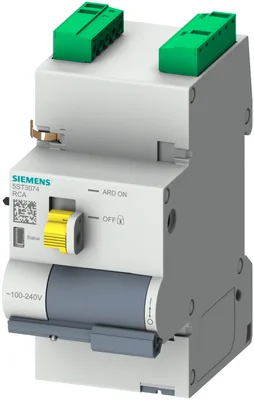

Siemens 5ST3074

remote operating mechanism 5ST3 ARD with measurement of the insulation resistance; 100-240 V AC; 2.5 MW; for CB, RCCB, RC units, RCBO, on-off switch

SiemensMFR # 5ST3074SKU # YLSYAUNM2UNSGVZ

product brand nameSENTRON

design of the productMountable

display version LEDYes

design of the product factory mountedNo

overvoltage categoryIII

insulation voltage rated value250 V

Have questions?Chat on WhatsApp

About This Product

remote operating mechanism 5ST3 ARD with measurement of the insulation resistance; 100-240 V AC; 2.5 MW; for CB, RCCB, RC units, RCBO, on-off switch

Siemens 5ST3074

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationremote operating mechanism ARD with IR test

design of the productMountable

display version LEDYes

design of the product factory mountedNo

electrical endurance (operating cycles) typical10 000

overvoltage categoryIII

Voltage

insulation voltage rated value250 V

surge voltage resistance rated value4 kV

Supply voltage

rated value230 V

at AC rated value minimum100 V

at AC rated value maximum240 V

protection class IPIP20

Dissipation

power loss [V∙A] during standby1.5 W

Control current

type of voltage of control voltageAC

Product details

product feature interlockYes

fault signal contactNo

auxiliary switchNo

number of fault signal contacts0

number of NC contacts0

number of NO contacts0

number of CO contacts0

product extension can be mountedUniversal

product extensionRemote operating mechanism ARD

number of remote reset per minute4

number of attempts for automatic resetting (standard)3

product function test function for fault current tripNo

Connections

wire length in the control circuit1 500 m

minimum0.5 mm²

maximum1.5 mm²

minimum30

maximum14

minimum0.2 N·m

maximum0 N·m

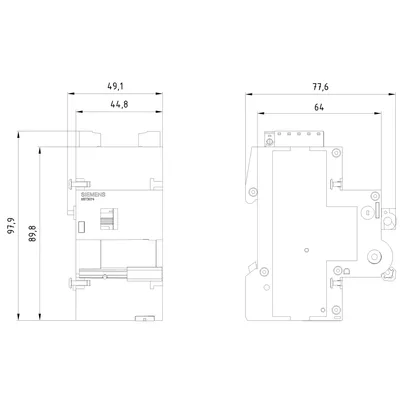

Mechanical Design

height90 mm

width45 mm

depth72 mm

number of modular width units3

Net Weight240 g

Environmental conditions

standardIEC63024

minimum-40 °C

maximum70 °C

ambient temperature during storage minimum-40 °C
