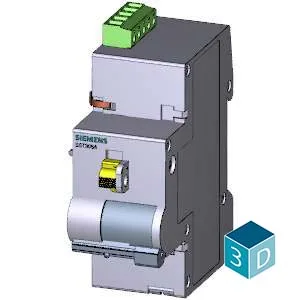

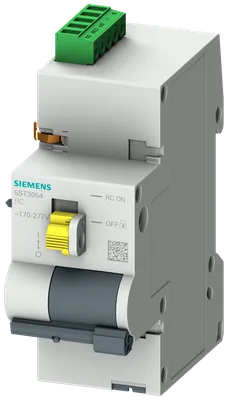

Siemens 5ST3054

remote operating mechanism 5ST3 Basic 230 V AC; 2 MW; for CB, RCBO up to 3-pole, on-off switch

SiemensMFR # 5ST3054SKU # YLSUY5R8CELV2W

product brand nameSENTRON

product designationRemote controlled mechanism Basic

design of the productMountable

display version LEDNo

design of the product factory mountedNo

rated value230 V

Have questions?Chat on WhatsApp

About This Product

remote operating mechanism 5ST3 Basic 230 V AC; 2 MW; for CB, RCBO up to 3-pole, on-off switch

Siemens 5ST3054

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationRemote controlled mechanism Basic

design of the productMountable

display version LEDNo

design of the product factory mountedNo

electrical endurance (operating cycles) typical10 000

Supply voltage

rated value230 V

at AC rated value minimum177 V

at AC rated value maximum270 V

protection class IPIP20

Dissipation

power loss [V∙A] during standby1 W

Control current

type of voltage of control voltageAC

Product details

product feature interlockNo

fault signal contactNo

auxiliary switchNo

number of fault signal contacts0

number of NC contacts0

number of NO contacts0

number of CO contacts0

product extension can be mountedUniversal

product extensionremote operating mechanism

number of remote reset per minute2

Connections

wire length in the control circuit1 500 m

minimum0.5 mm²

maximum1.5 mm²

minimum30

maximum14

minimum0.2 N·m

maximum0.25 N·m

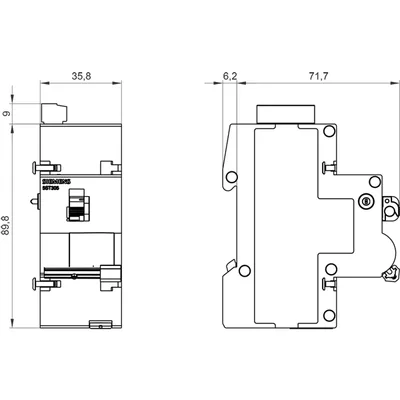

Mechanical Design

height90 mm

width36 mm

depth70 mm

number of modular width units2

Net Weight235 g

Environmental conditions

minimum-25 °C

maximum45 °C

ambient temperature during storage minimum-40 °C
