How can I get a price quote for Siemens 5ST3031-0HG?

You can request a fast quote for Siemens 5ST3031-0HG from Yılsa Engineering. Reference part number CEY-8EF3B038904C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5ST3031-0HG in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5ST3031-0HG genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5ST3031-0HG?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

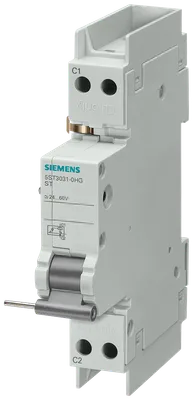

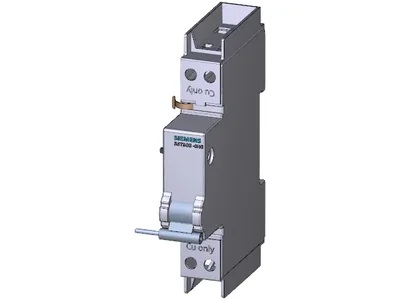

Siemens 5ST3031-0HG

shunt release 24-60 V DC for miniature circuit breaker according to UL 489

SiemensMFR # 5ST3031-0HGSKU # CEY-8EF3B038904C

product brand nameSENTRON

product designationShunt trip

design of the productMountable

design of the product factory mountedNo

operational current at DC rated value0.05 A

rated value60 V

Have questions?Chat on WhatsApp

About This Product

shunt release 24-60 V DC for miniature circuit breaker according to UL 489

Siemens 5ST3031-0HG

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationShunt trip

design of the productMountable

design of the product factory mountedNo

electrical endurance (operating cycles) typical6 000

Current

operational current at DC rated value0.05 A

Supply voltage

rated value60 V

at AC rated value minimum24 V

at AC rated value maximum60 V

at DC rated value minimum24 V

at DC rated value maximum60 V

protection class IPIP20

Control current

type of voltage of control voltageAC/DC

Product details

auxiliary switchNo

number of fault signal contacts0

number of NC contacts0

number of NO contacts0

number of CO contacts0

product extension can be mountedCircuit breaker

product extensionshunt trip

Connections

minimum0.5 mm²

maximum2.5 mm²

minimum24

maximum12

maximum0.8 N·m

Mechanical Design

height110 mm

width18 mm

depth70 mm

number of modular width units1

Net Weight125 g

Environmental conditions

standardIEC/EN60947-1; UL489

Accessories 1

Genuine accessories that can be used with the Siemens 5ST3031-0HG motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
