How can I get a price quote for Siemens 5ST2508?

You can request a fast quote for Siemens 5ST2508 from Yılsa Engineering. Reference part number YLSHA7PD4NKRHG3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5ST2508 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5ST2508 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5ST2508?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

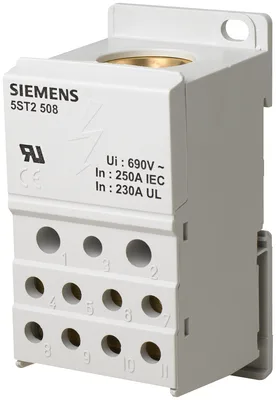

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 5ST2508

distribution block 1-pole, IEC 250 A, 1000 V AC / 1500 V DC; UL 230 A, 600 V AC/DC; input: 1x 35-120 mm2, output: 2x 2.5-35 mm2, 5x 2.5-16 mm2, 4x 2.5-10 mm2 for DIN-rail mounting

SiemensMFR # 5ST2508SKU # YLSHA7PD4NKRHG3

product brand nameSENTRON

product designationDistribution block

design of the productdistribution block

operating voltage rated value1 000 V

operational current rated value250 A

colorgrey

Have questions?Chat on WhatsApp

About This Product

distribution block 1-pole, IEC 250 A, 1000 V AC / 1500 V DC; UL 230 A, 600 V AC/DC; input: 1x 35-120 mm2, output: 2x 2.5-35 mm2, 5x 2.5-16 mm2, 4x 2.5-10 mm2 for DIN-rail mounting

Siemens 5ST2508

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationDistribution block

design of the productdistribution block

operating voltage rated value1 000 V

Main circuit

operational current rated value250 A

Appearance

colorgrey

Number

number of terminal levels3

Connections

minimum2.5 mm²

maximum120 mm²

minimum2.5 mm²

maximum120 mm²

with core end processing minimum2.5 mm²

with core end processing maximum95 mm²

type of connection 1screw-type terminal

type of connection 2screw-type terminal

position of the terminalbottom

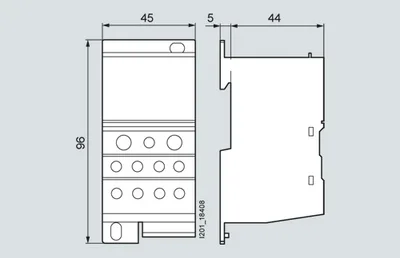

Mechanical Design

height44 mm

length96 mm

fastening methodDIN rail

Net Weight429 g

material of the insulating bodyOther

Environmental conditions

minimum-25 °C

maximum70 °C

Accessories 1

Genuine accessories that can be used with the Siemens 5ST2508 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
