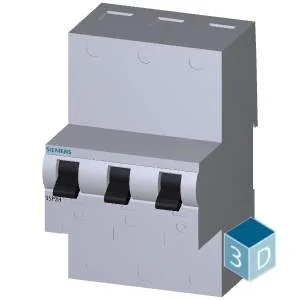

Siemens 5SP3840-3

Further information about local contact: www.siemens.com/lowvoltage/contact (SHU), 3x 1-pole, E 40, 400V

SiemensMFR # 5SP3840-3SKU # YLSIRU4BCUYBNVU

product brand nameSENTRON

product designationMiniature circuit breaker

design of the productMain miniature circuit breaker

number of poles3

design of pole3P

tripping characteristic classE

Have questions?Chat on WhatsApp

About This Product

Further information about local contact: www.siemens.com/lowvoltage/contact (SHU), 3x 1-pole, E 40, 400V

Siemens 5SP3840-3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMiniature circuit breaker

design of the productMain miniature circuit breaker

design of the locking deviceIntegrated locking slide, lockable by means of a lock, wire seal and cable ties

General technical data

number of poles3

design of pole3P

tripping characteristic classE

mechanical service life (operating cycles) typical20 000

overvoltage category4

degree of pollution3

Voltage

insulation voltage (Ui) rated value690 V

surge voltage resistance rated value6 kV

supply voltage with single-phase operation at AC rated value230 V

— at 30 °C rated value40 A

— at 40 °C rated value38 A

— at 50 °C rated value36 A

— at 55 °C rated value35 A

operational current at AC rated value40 A

Supply voltage

supply voltage at AC400 V

minimum110 V

maximum440 V

supply voltage frequency rated value50 Hz

Protection class

protection class IPIP40, with connected conductors

Breaking Capacity

rated value25 kA

according to EN 60898 rated value25 kA

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole6.4 W

suitability for operationResidential buildings/infrastructure

Product details

infeed at box terminalYes

saddle terminalsYes

product feature properties for main switches in accordance with EN 60204-1Yes

product feature sealableYes

Display and operation

display version for switch position indicatorOFF = green, ON = red

Connections

solid minimum2.5 mm²

solid maximum50 mm²

stranded minimum2.5 mm²

stranded maximum50 mm²

minimum2.5 mm²

maximum50 mm²

minimum2.5 mm²

maximum50 mm²

minimum2.5 mm²

maximum50 mm²

position of power supply cordAny

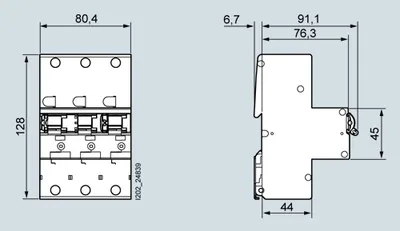

Mechanical Design

height128 mm

depth76.3 mm

depth of the enclosure76.3 mm

number of modular width units4.5

fastening methodDIN rail

fastening method otheron DIN rail 35 mm acc. to EN 60715

Net Weight1.088 kg

Environmental conditions

shock resistance30 g, at least 3 impacts, impact duration 11 ms

vibration resistance according to IEC 60068-2-62 g, 20 frequency cycles 5 to 150 to 15 Hz

minimum-25 °C

maximum55 °C

minimum-40 °C

maximum70 °C
