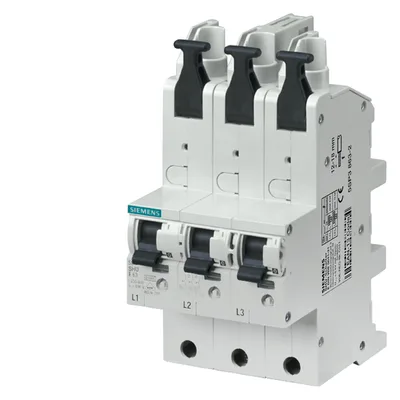

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 5SP3825-2

Further information about local contact: www.siemens.com/lowvoltage/contact (SHU), 3x 1-pole, E 25A, 230/400 V Mounting on 40 mm busbars

SiemensMFR # 5SP3825-2SKU # YLSLBQPJ2JB8K5S

product brand nameSENTRON

product designationMiniature circuit breaker

design of the productMain miniature circuit breaker

number of poles3

design of pole3P

tripping characteristic classE

Have questions?Chat on WhatsApp

About This Product

Further information about local contact: www.siemens.com/lowvoltage/contact (SHU), 3x 1-pole, E 25A, 230/400 V Mounting on 40 mm busbars

Siemens 5SP3825-2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMiniature circuit breaker

design of the productMain miniature circuit breaker

design of the locking deviceLocking slide with lock, additional wire seal, cable ties and Antilux

General technical data

number of poles3

design of pole3P

tripping characteristic classE

mechanical service life (operating cycles) typical20 000

overvoltage category4

degree of pollution3

Voltage

insulation voltage (Ui) rated value690 V

surge voltage resistance rated value6 kV

supply voltage with single-phase operation at AC rated value230 V

— at 30 °C rated value25 A

— at 40 °C rated value23.75 A

— at 50 °C rated value22.5 A

— at 55 °C rated value21.875 A

operational current at AC rated value25 A

Supply voltage

supply voltage at AC400 V

minimum110 V

maximum440 V

supply voltage frequency rated value50 Hz

Protection class

protection class IPIP40, with connected conductors

Breaking Capacity

rated value25 kA

according to EN 60898 rated value25 kA

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole6.5 W

suitability for operationResidential buildings/infrastructure

Product details

outgoing feeder via spring-loaded terminalYes

infeed at box terminalYes

product feature properties for main switches in accordance with EN 60204-1Yes

product feature sealableYes

Display and operation

display version for switch position indicatorOFF = green, ON = red

Connections

minimum2.5 mm²

maximum16 mm²

solid minimum2.5 mm²

solid maximum50 mm²

stranded minimum2.5 mm²

stranded maximum50 mm²

position of power supply cordStipulated by installation in the lower section of the meter panel

Mechanical Design

height151.3 mm

depth89.5 mm

depth of the enclosure76.3 mm

number of modular width units4.5

fastening methodBusbar

fastening method otheron 40-mm busbar system in compliance with DIN 43870 Part 2

Net Weight1.272 kg

Environmental conditions

shock resistance30 g, at least 3 impacts, impact duration 11 ms

vibration resistance according to IEC 60068-2-62 g, 20 frequency cycles 5 to 150 to 15 Hz

minimum-25 °C

maximum55 °C

minimum-40 °C

maximum70 °C
