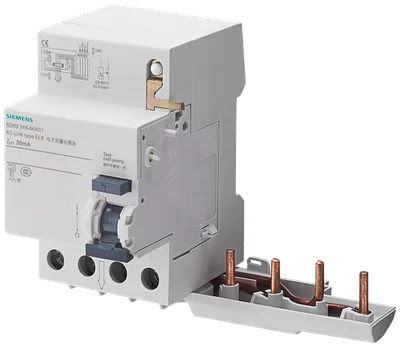

Photo may not represent actual item. Refer to name and product specs for all details.

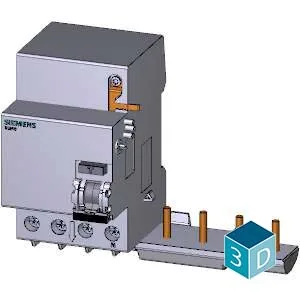

Siemens 5SM9446-0

Voltage-dependent RCD function. Please check if approved in national standards. AC, In: 63 A, 100 mA, Un AC: 400 V

SiemensMFR # 5SM9446-0SKU # YLSDGFH40YGOJMG

product brand nameSENTRON

product designationRC unit electronic for 5SL4

design of the productInstantaneous

product versionDI unit, type AC, 0.3...63 A, 4P, 100 mA

number of poles4

switching function short-term delayedNo

Have questions?Chat on WhatsApp

About This Product

Voltage-dependent RCD function. Please check if approved in national standards. AC, In: 63 A, 100 mA, Un AC: 400 V

Siemens 5SM9446-0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationRC unit electronic for 5SL4

design of the productInstantaneous

product versionDI unit, type AC, 0.3...63 A, 4P, 100 mA

General technical data

number of poles4

size of installation devices according to DIN 438801

mechanical service life (operating cycles) typical10 000

switching function short-term delayedNo

degree of pollution2

tripping fault current rated value100 mA

Supply voltage

supply voltage for testing equipment minimum125 V

value range of the supply voltage frequency50 Hz

value range of the supply voltage at AC230/400 V

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

according to EN 60898 rated value6 kA

according to IEC 61008-1 rated value6 kA

Dissipation

for rated value of the current at AC in hot operating state per pole9.1 W

Appearance

RAL color number7 035

RAL color number (similar)7 035

Product details

product feature silicon-freeYes

product extension installable supplementary devicesNo

Connections

minimum0.75 mm²

maximum35 mm²

minimum0.75 mm²

maximum25 mm²

minimum2.5 N·m

maximum3 N·m

position of power supply cordTop, above miniature circuit breaker

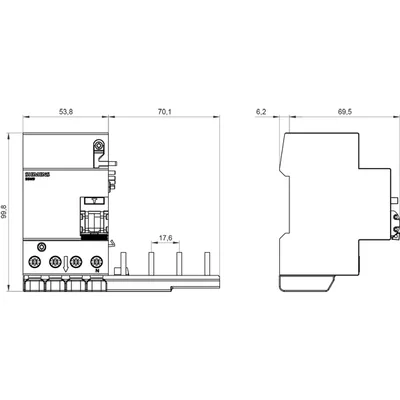

Mechanical Design

height100 mm

width54 mm

depth70 mm

installation depth70 mm

number of modular width units3

fastening methodStandard rail mounting

mounting positionany

Net Weight250 g

Environmental conditions

minimum-25 °C

maximum55 °C

ambient temperature during storage minimum-40 °C

number of test cycles for environmental testing according to IEC 60068-2-3028

Accessories 13

Genuine accessories that can be used with the Siemens 5SM9446-0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5TG8240	Aksesuar
8WH8210-0AA35	Aksesuar
8WH8210-0AA36	Aksesuar
5SW3005	Aksesuar
5SW3007	Aksesuar
5ST2134	Aksesuar
7LF9006	Aksesuar
8GB4561	Aksesuar
8GB4562	Aksesuar
5ST2135	Aksesuar
5ST2136	Aksesuar
8GB4563	Aksesuar
8GB4564	Aksesuar
