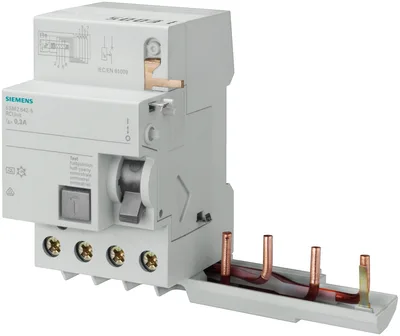

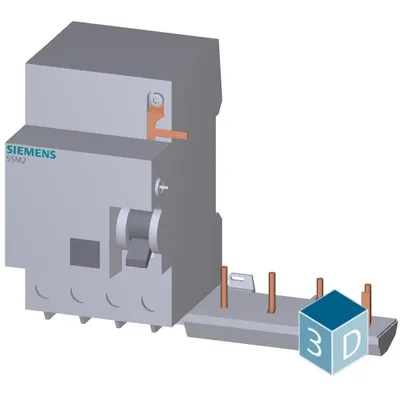

Siemens 5SM2845-2

RC unit, 4-pole, type AC, selective, In: 63 A, 1000 mA, Un AC: 400 V, for 5SY

SiemensMFR # 5SM2845-2SKU # YLSVC357R7BOD2D

product brand nameSENTRON

product designationRCD-unit

design of the productSelective

product type designation5SM2

product versionfor 5SY

number of poles4

Have questions?Chat on WhatsApp

About This Product

RC unit, 4-pole, type AC, selective, In: 63 A, 1000 mA, Un AC: 400 V, for 5SY

Siemens 5SM2845-2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationRCD-unit

design of the productSelective

product type designation5SM2

product versionfor 5SY

General technical data

number of poles4

design of pole4 poles

size of installation devices according to DIN 438801

touch protection against electrical shock according to EN 50274Finger and back-of-hand safe

mechanical service life (operating cycles) typical10 000

overvoltage categoryIII

degree of pollution2

Voltage

type of voltage of the operating voltageAC

insulation voltage (Ui) rated value460 V

surge voltage resistance rated value4 000 V

tripping fault current rated value1 000 mA

operational current at AC rated value63 A

residual current typeAC

surge current resistance rated value5 kA

at AC400 V

for testing equipment minimum195 V

value range of the supply voltage frequency50 Hz

value range of the operating frequency50 Hz

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

protection function false trippingYes

Dissipation

for rated value of the current at AC in hot operating state per pole3 W

Product details

product feature OFF-delay time adjustableNo

product feature rated fault current adjustableNo

product feature sealableNo

Connections

minimum1.5 mm²

maximum25 mm²

minimum1.5 mm²

maximum25 mm²

minimum2.5 N·m

maximum3 N·m

position of power supply cordtop or bottom

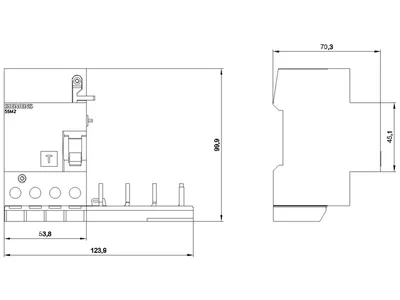

Mechanical Design

height90 mm

width72 mm

depth70 mm

installation depth70 mm

number of modular width units4

fastening methodDIN rail

mounting positionany

Net Weight319 g

Environmental conditions

minimum-5 °C

maximum45 °C

minimum-40 °C

maximum75 °C

number of test cycles for environmental testing according to IEC 60068-2-3028

Certificates

reference code according to IEC 81346-2F
