How can I get a price quote for Siemens 5SM2827-8?

You can request a fast quote for Siemens 5SM2827-8 from Yılsa Engineering. Reference part number YLSAVEAZHOIHGU9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SM2827-8 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SM2827-8 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SM2827-8?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

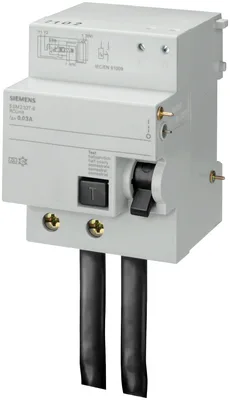

Siemens 5SM2827-8

RC unit, 2-pole, type A, selective, In: 100 A, 1000 mA, Un AC: 230 V, for 5SP4

SiemensMFR # 5SM2827-8SKU # YLSAVEAZHOIHGU9

product brand nameSENTRON

product designationRCD-unit

design of the productSelective

product type designation5SM2

product versionfor 5SP4

number of poles2

Have questions?Chat on WhatsApp

About This Product

RC unit, 2-pole, type A, selective, In: 100 A, 1000 mA, Un AC: 230 V, for 5SP4

Siemens 5SM2827-8

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationRCD-unit

design of the productSelective

product type designation5SM2

product versionfor 5SP4

General technical data

number of poles2

design of pole2 poles

size of installation devices according to DIN 438801

touch protection against electrical shock according to EN 50274Finger and back-of-hand safe

mechanical service life (operating cycles) typical10 000

overvoltage categoryIII

degree of pollution2

Voltage

type of voltage of the operating voltageAC

insulation voltage (Ui) rated value460 V

surge voltage resistance rated value4 000 V

tripping fault current rated value1 000 mA

operational current at AC rated value100 A

residual current typeA

surge current resistance rated value5 kA

at AC230 V

for testing equipment minimum195 V

value range of the supply voltage frequency50 Hz

value range of the operating frequency50/60 Hz

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

protection function false trippingYes

Dissipation

for rated value of the current at AC in hot operating state per pole5 W

Product details

product feature OFF-delay time adjustableNo

product feature rated fault current adjustableNo

product feature sealableNo

Connections

minimum6 mm²

maximum50 mm²

minimum6 mm²

maximum50 mm²

minimum2.5 N·m

maximum3 N·m

position of power supply cordtop or bottom

Mechanical Design

height90 mm

width72 mm

depth70 mm

installation depth70 mm

number of modular width units4

fastening methodDIN rail

mounting positionany

Net Weight478 g

Environmental conditions

minimum-25 °C

maximum45 °C

minimum-40 °C

maximum75 °C

number of test cycles for environmental testing according to IEC 60068-2-3028

Certificates

reference code according to IEC 81346-2F

Accessories 6

Genuine accessories that can be used with the Siemens 5SM2827-8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
