How can I get a price quote for Siemens 5SL6016-7MC?

You can request a fast quote for Siemens 5SL6016-7MC from Yılsa Engineering. Reference part number YLSZPZRYCWDJ1BI. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SL6016-7MC in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SL6016-7MC genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SL6016-7MC?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

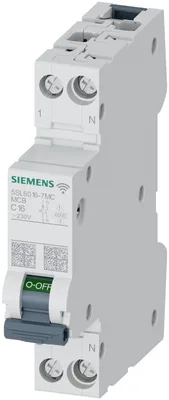

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 5SL6016-7MC

Miniature Circuit Breaker Measuring, Communication AC 230V 6kA, 1+N pole, C, 16A Please consider Radio approval! List of countries: see Certificates

SiemensMFR # 5SL6016-7MCSKU # YLSZPZRYCWDJ1BI

product brand nameSENTRON

product designationMiniature circuit breaker

design of the productMiniature circuit breaker COM compact

type of measured value detectioncompletely

design of pole1P+N

tripping characteristic classC

Have questions?Chat on WhatsApp

About This Product

Miniature Circuit Breaker Measuring, Communication AC 230V 6kA, 1+N pole, C, 16A Please consider Radio approval! List of countries: see Certificates

Siemens 5SL6016-7MC

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMiniature circuit breaker

design of the productMiniature circuit breaker COM compact

type of measured value detectioncompletely

General technical data

design of pole1P+N

apparent power consumption of the power supply0.4 V·A

tripping characteristic classC

mechanical service life (operating cycles) typical10 000

electrical endurance (operating cycles) at AC load in the mean value7 500

measurable line frequency initial value45 Hz

measurable line frequency full-scale value65 Hz

overvoltage category3

degree of pollution2

frequency with radio transmission minimum2 400 MHz

frequency with radio transmission maximum2 483.5 MHz

status display of the measured datavoltage, current, active power, apparent power, reactive power, active energy, line frequency, power factor, temperature, switching cycles, operating hours, tripping, warnings

Voltage

type of voltage of the operating voltageAC

insulation voltage (Ui) at AC rated value250 V

— at 30 °C rated value16 A

— at 40 °C rated value15.06 A

— at 50 °C rated value13.53 A

— at 55 °C rated value14.06 A

— at 60 °C rated value12.98 A

operational current at AC rated value16 A

initial value0.04 A

full-scale value33 A

reference current (Iref) 1 at AC rated value16 A

Supply voltage

at AC230 V

value range of the supply voltage frequency50/60 Hz

minimum100 V

with single-phase operation at AC maximum250 V

Protection class

protection class IPIP20, with connected conductors

on the frontIP40

rear sideIP20

Breaking Capacity

according to EN 60898 rated value6 kA

energy limitation class3

Dissipation

at AC in hot operating state per pole2.1 W

Suitability

suitability for operationResidential buildings/infrastructure

suitability for use ammeterYes

suitability for use reactive power meterYes

suitability for use frequency meterYes

suitability for use voltmeterYes

suitability for use wattmeterYes

Product details

product feature touch protectionYes

combined terminal topNo

combined terminal bottomNo

neutral conductor switchingYes

product feature properties for main switches in accordance with EN 60204-1No

product feature halogen-freeYes

product feature sealableYes

product feature silicon-freeYes

product extension installable supplementary devicesYes

Product function

communication functionYes

other measurement functionYes

Communication

guideline via radio-controlled system2014/53/EU

protocol is supportedWireless protocol

Fault limits

standards for error limitsbased on IEC61557-12, IEC62053-22, IEC62053-23

reference condition for metering accuracyaccording IEC61557-12, IEC62053-22 and IEC62053-23

for measured variable current0.5 %

for measured variable voltage0.5 %

for measured variable electrical energy1 %

for measured variable reactive power1 %

for measured variable apparent power1 %

for measured variable active power1 %

Measuring inputs

minimum95 V

maximum255 V

measuring category for voltage measurementCATIII according IEC 61010-2-030

measuring procedure for current measurementTRMS

measuring procedure for voltage measurementTRMS

Connections

minimum0.75 mm²

maximum16 mm²

minimum0.75 mm²

maximum16 mm²

minimum0.75 mm²

maximum10 mm²

minimum10.6 lbf·in

maximum17.7 lbf·in

minimum1.2 N·m

maximum2 N·m

position of power supply cordAny

Mechanical Design

height90 mm

width18 mm

depth76 mm

installation depth70 mm

number of modular width units1

fastening methodDIN rail

mounting positionany

Net Weight134 g

Environmental conditions

standardIEC/EN60898-1, GB/T10963.1

standard for shocksIEC 61373

standard for environmental sinusoidal oscillation checkIEC 60068-2-6

vibration resistance according to IEC 60068-2-6Yes

minimum-25 °C

maximum60 °C

ambient temperature during operation-25...45°C: max. 85%rF. 45...60°C: max. 43%rF

minimum-40 °C

maximum75 °C

number of test cycles for environmental testing according to IEC 60068-2-3028
