How can I get a price quote for Siemens 5SL6010-6MF?

You can request a fast quote for Siemens 5SL6010-6MF from Yılsa Engineering. Reference part number YLSR4RTJ8I1GMTO. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SL6010-6MF in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SL6010-6MF genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SL6010-6MF?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

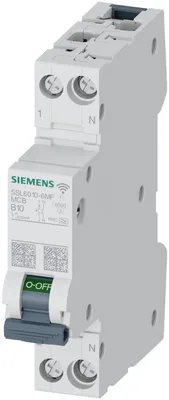

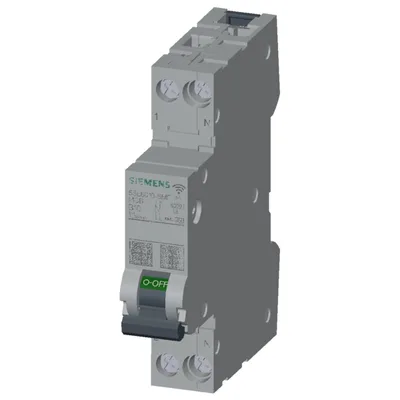

Siemens 5SL6010-6MF

Miniature Circuit Breaker Measuring RCM / EM Communication AC 230V 6kA, 1+N pole, B, 10A Please consider Radio approval! List of countries: see Certificates

SiemensMFR # 5SL6010-6MFSKU # YLSR4RTJ8I1GMTO

product brand nameSENTRON

product designationMiniature circuit breaker

design of the productMiniature circuit breaker COM compact

type of measured value detectioncompletely

design of pole1P+N

tripping characteristic classB

Have questions?Chat on WhatsApp

About This Product

Miniature Circuit Breaker Measuring RCM / EM Communication AC 230V 6kA, 1+N pole, B, 10A Please consider Radio approval! List of countries: see Certificates

Siemens 5SL6010-6MF

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMiniature circuit breaker

design of the productMiniature circuit breaker COM compact

product versionNotice! This is NOT a device with a residual-current protection function. This device must never be used instead of an RCD.

type of measured value detectioncompletely

General technical data

design of pole1P+N

apparent power consumption of the power supply1.4 V·A

tripping characteristic classB

mechanical service life (operating cycles) typical10 000

electrical endurance (operating cycles) at AC load in the mean value7 500

measurable line frequency initial value45 Hz

measurable line frequency full-scale value65 Hz

overvoltage category3

degree of pollution2

frequency with radio transmission minimum2 400 MHz

frequency with radio transmission maximum2 483.5 MHz

status display of the measured datavoltage, current, residual current, active power, apparent power, reactive power, active energy, line frequency, power factor, temperature, switching cycles, operating hours, tripping, warnings

Voltage

type of voltage of the operating voltageAC

insulation voltage (Ui) at AC rated value285 V

supply voltage with single-phase operation at AC rated value230 V

— at 30 °C rated value10 A

— at 40 °C rated value9.26 A

— at 50 °C rated value8.02 A

— at 55 °C rated value8.45 A

— at 60 °C rated value7.56 A

operational current at AC rated value10 A

initial value0.04 A

full-scale value33 A

reference current (Iref) 1 at AC rated value10 A

Supply voltage

at AC230 V

value range of the supply voltage frequency50/60 Hz

minimum120 V

with single-phase operation at AC maximum400 V

Protection class

protection class IPIP20, with connected conductors

on the frontIP40

rear sideIP20

Breaking Capacity

according to EN 60898 rated value6 kA

grid spacing35 mm

energy limitation class3

Dissipation

at AC in hot operating state per pole1.7 W

Residual current

monitoring function of residual currents according to standardDIN EN IEC 62020-1 (VDE 0663-1)

type of residual current monitoringType F

measuring channels with residual currentBase Frequency, Harmonics, Lowpass AC, Lowpass RMS, Bandpass, Highpass

measuring precision of the residual current3mA...5mA: +/-30%; 5mA...1000mA: +/-15%

residual current at measuring range lower limit0.003 A

residual current at measuring range upper limit1 A

prewarning threshold of the residual current in factory setting50 %

prewarning threshold of the residual current at setting range lower limit50 %

prewarning threshold of the residual current at setting range upper limit100 %

residual current alarm threshold in factory setting0.015 A

residual current alarm threshold at setting range upper limit0.3 A

residual current alarm threshold at setting range lower limit0.007 A

frequency measuring range with residual current<= 100kHz

Suitability

suitability for use ammeterYes

suitability for use reactive power meterYes

suitability for use frequency meterYes

suitability for use voltmeterYes

suitability for use wattmeterYes

Product details

product feature touch protectionYes

combined terminal topNo

combined terminal bottomNo

neutral conductor switchingYes

product feature properties for main switches in accordance with EN 60204-1No

product feature halogen-freeYes

product feature sealableYes

product feature silicon-freeYes

product extension installable supplementary devicesYes

Product function

communication functionYes

other measurement functionYes

Communication

guideline via radio-controlled system2014/53/EU

protocol is supportedWireless protocol

Fault limits

standards for error limitsbased on IEC61557-12, IEC62053-22, IEC62053-23

for measured variable current0.5 %

for measured variable electrical energy1 %

Measuring inputs

minimum100 V

maximum400 V

measuring category for voltage measurementCATIII according IEC 61010-2-030

measuring procedure for current measurementTRMS

measuring procedure for voltage measurementTRMS

Connections

minimum0.75 mm²

maximum16 mm²

minimum0.75 mm²

maximum16 mm²

minimum0.75 mm²

maximum10 mm²

minimum10.6 lbf·in

maximum17.7 lbf·in

minimum1.2 N·m

maximum2 N·m

position of power supply cordAny

Mechanical Design

height90 mm

width18 mm

depth76 mm

installation depth70 mm

number of modular width units1

fastening methodDIN rail

mounting positionany

Net Weight136 g

Environmental conditions

standardIEC/EN60898-1, GB/T10963.1

standard for shocksIEC 61373

standard for environmental sinusoidal oscillation checkIEC 60068-2-6

vibration resistance according to IEC 60068-2-6Yes

minimum-40 °C

maximum70 °C

minimum-40 °C

maximum75 °C

number of test cycles for environmental testing according to IEC 60068-2-3028
