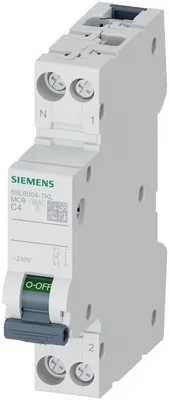

Siemens 5SL6004-7KL
miniature circuit breaker 230 V, 6 kA, 1+N-pole/1 MW, N left, C4
product brand nameSENTRON
product designationMiniature circuit breaker
design of the productMiniature circuit breaker compact
design of pole1P+N
tripping characteristic classC
overvoltage category3
About This Product
miniature circuit breaker 230 V, 6 kA, 1+N-pole/1 MW, N left, C4
Siemens 5SL6004-7KL
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Model
product brand nameSENTRON
product designationMiniature circuit breaker
design of the productMiniature circuit breaker compact
General technical data
design of pole1P+N
tripping characteristic classC
mechanical service life (operating cycles) typical4 000
overvoltage category3
degree of pollution2
Voltage
type of voltage of the operating voltageAC
insulation voltage (Ui) at AC rated value250 V
— at 30 °C rated value4 A
— at 40 °C rated value3.84 A
— at 50 °C rated value3.67 A
— at 55 °C rated value3.59 A
— at 60 °C rated value3.5 A
operational current at AC rated value4 A
Supply voltage
at AC230 V
at DC rated value60 V
value range of the supply voltage frequency50/60 Hz
minimum24 V
with single-phase operation at AC maximum250 V
Protection class
protection class IPIP20, with connected conductors
Breaking Capacity
according to EN 60898 rated value6 kA
energy limitation class3
Dissipation
at AC in hot operating state per pole2 W
Suitability
suitability for operationResidential buildings/infrastructure
Product details
product feature touch protectionYes
combined terminal topNo
combined terminal bottomNo
neutral conductor switchingYes
product feature properties for main switches in accordance with EN 60204-1No
product feature halogen-freeYes
product feature sealableYes
product feature silicon-freeYes
product extension installable supplementary devicesYes
Product function
communication functionNo
other measurement functionNo
Connections
minimum0.75 mm²
maximum16 mm²
minimum0.75 mm²
maximum16 mm²
minimum0.75 mm²
maximum10 mm²
minimum10.6 lbf·in
maximum22.1 lbf·in
minimum1.2 N·m
maximum2 N·m
position of power supply cordAny
Mechanical Design
height90 mm
width18 mm
depth76 mm
installation depth70 mm
number of modular width units1
fastening methodDIN rail
mounting positionany
Net Weight120 g
Environmental conditions
standardIEC/EN60898-1, GB/T10963.1
vibration resistance according to IEC 60068-2-6Yes
minimum-25 °C
maximum60 °C
minimum-40 °C
maximum75 °C
number of test cycles for environmental testing according to IEC 60068-2-306
