How can I get a price quote for Siemens 5SL6004-7?

You can request a fast quote for Siemens 5SL6004-7 from Yılsa Engineering. Reference part number YLSDZIVI8WW2MY. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SL6004-7 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SL6004-7 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SL6004-7?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

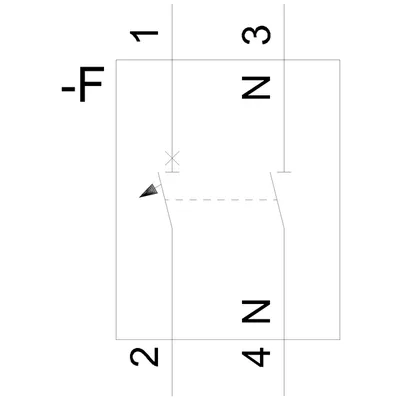

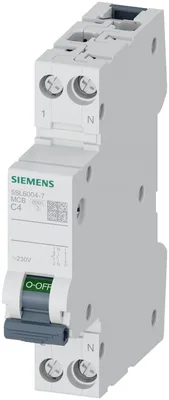

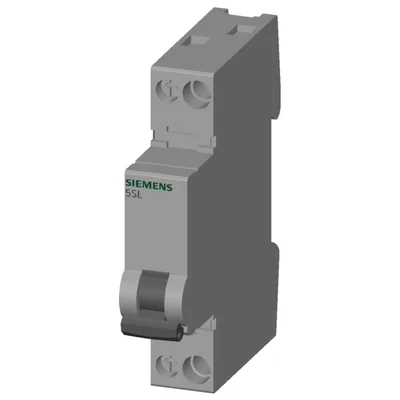

Siemens 5SL6004-7

miniature circuit breaker 230 V, 6 kA, 1+N-pole/1 MW, C4

SiemensMFR # 5SL6004-7SKU # YLSDZIVI8WW2MY

product brand nameSENTRON

product designationMiniature circuit breaker

design of the productMiniature circuit breaker compact

design of pole1P+N

tripping characteristic classC

overvoltage category3

Have questions?Chat on WhatsApp

About This Product

Siemens 5SL6004-7 (miniature circuit breaker 230 V, 6 kA, 1+N-pole/1 MW, C4) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 5SL6004-7 — price, stock availability and technical specifications.

Siemens 5SL6004-7

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMiniature circuit breaker

design of the productMiniature circuit breaker compact

General technical data

design of pole1P+N

tripping characteristic classC

mechanical service life (operating cycles) typical4 000

overvoltage category3

degree of pollution2

Voltage

type of voltage of the operating voltageAC

insulation voltage (Ui) at AC rated value250 V

— at 30 °C rated value4 A

— at 40 °C rated value3.84 A

— at 50 °C rated value3.67 A

— at 55 °C rated value3.59 A

— at 60 °C rated value3.5 A

operational current at AC rated value4 A

Supply voltage

at AC230 V

at DC rated value60 V

value range of the supply voltage frequency50/60 Hz

minimum24 V

with single-phase operation at AC maximum250 V

Protection class

protection class IPIP20, with connected conductors

Breaking Capacity

according to EN 60898 rated value6 kA

energy limitation class3

Dissipation

at AC in hot operating state per pole2 W

Suitability

suitability for operationResidential buildings/infrastructure

Product details

product feature touch protectionYes

combined terminal topNo

combined terminal bottomNo

neutral conductor switchingYes

product feature properties for main switches in accordance with EN 60204-1No

product feature halogen-freeYes

product feature sealableYes

product feature silicon-freeYes

product extension installable supplementary devicesYes

Product function

communication functionNo

other measurement functionNo

Connections

minimum0.75 mm²

maximum16 mm²

minimum0.75 mm²

maximum16 mm²

minimum0.75 mm²

maximum10 mm²

minimum10.6 lbf·in

maximum22.1 lbf·in

minimum1.2 N·m

maximum2 N·m

position of power supply cordAny

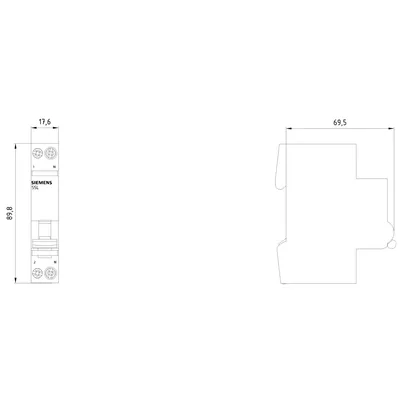

Mechanical Design

height90 mm

width18 mm

depth76 mm

installation depth70 mm

number of modular width units1

fastening methodDIN rail

mounting positionany

Net Weight119 g

Environmental conditions

standardIEC/EN60898-1, GB/T10963.1

vibration resistance according to IEC 60068-2-6Yes

minimum-25 °C

maximum60 °C

minimum-40 °C

maximum75 °C

number of test cycles for environmental testing according to IEC 60068-2-306
