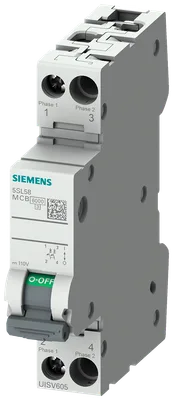

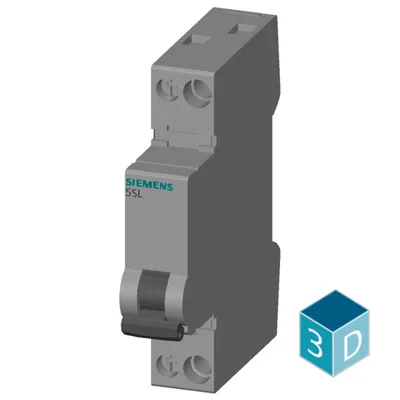

Siemens 5SL5802-6

miniature circuit breaker 6 kA 110 V DC, 2-pole, width 1 MW (18 mm), switching characteristic B, 2 A

SiemensMFR # 5SL5802-6SKU # YLSFYGB33M1AMR

product brand nameSENTRON

product designationMiniature circuit breaker

design of the productMiniature circuit breaker compact

design of pole2P

tripping characteristic classB

overvoltage category3

Have questions?Chat on WhatsApp

About This Product

miniature circuit breaker 6 kA 110 V DC, 2-pole, width 1 MW (18 mm), switching characteristic B, 2 A

Siemens 5SL5802-6

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMiniature circuit breaker

design of the productMiniature circuit breaker compact

General technical data

design of pole2P

tripping characteristic classB

mechanical service life (operating cycles) typical4 000

overvoltage category3

degree of pollution2

Voltage

type of voltage of the operating voltageDC

— at 30 °C rated value2 A

— at 40 °C rated value1.9 A

— at 50 °C rated value1.79 A

— at 55 °C rated value1.73 A

— at 60 °C rated value1.67 A

operational current at DC rated value2 A

Supply voltage

at DC rated value110 V

minimum24 V

Protection class

protection class IPIP20, with connected conductors

Breaking Capacity

according to EN 60898 rated value6 kA

grid spacing35 mm

energy limitation class3

Dissipation

at DC in hot operating state per pole1.6 W

Suitability

suitability for operationresidential buildings/infrastructure/mobility

Product details

product feature touch protectionYes

combined terminal topNo

combined terminal bottomNo

neutral conductor switchingNo

product feature properties for main switches in accordance with EN 60204-1No

product feature halogen-freeYes

product feature sealableYes

product feature silicon-freeYes

product extension installable supplementary devicesYes

Product function

communication functionNo

other measurement functionNo

Connections

minimum0.75 mm²

maximum16 mm²

minimum0.75 mm²

maximum16 mm²

minimum0.8 mm²

maximum10 mm²

minimum10.6 lbf·in

maximum22 lbf·in

minimum1.2 N·m

maximum2 N·m

position of power supply cordAny

Mechanical Design

height90 mm

width18 mm

depth76 mm

installation depth70 mm

number of modular width units1

fastening methodDIN rail

mounting positionany

Net Weight150 g

Environmental conditions

standardIEC60898-3

vibration resistance according to IEC 60068-2-6Yes

minimum-40 °C

maximum70 °C

minimum-40 °C

maximum75 °C

number of test cycles for environmental testing according to IEC 60068-2-306
