How can I get a price quote for Siemens 5SJ4116-7HG40?

You can request a fast quote for Siemens 5SJ4116-7HG40 from Yılsa Engineering. Reference part number CEY-8EF3B030887F. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SJ4116-7HG40 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SJ4116-7HG40 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SJ4116-7HG40?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

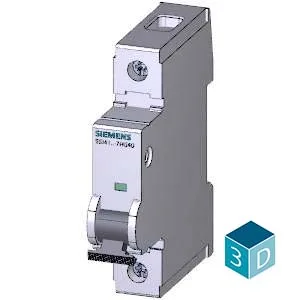

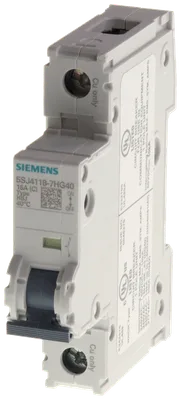

Siemens 5SJ4116-7HG40

Miniature circuit breaker 240 V 14kA, 1-pole, C, 16A, D=70 mm according to UL 489, equal polarity

SiemensMFR # 5SJ4116-7HG40SKU # CEY-8EF3B030887F

product brand nameSENTRON

product designationMiniature circuit breakers

design of the productMiniature circuit-breaker 5SJ4

number of poles1

design of pole1P

tripping characteristic classC

Have questions?Chat on WhatsApp

About This Product

Miniature circuit breaker 240 V 14kA, 1-pole, C, 16A, D=70 mm according to UL 489, equal polarity

Siemens 5SJ4116-7HG40

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMiniature circuit breakers

design of the productMiniature circuit-breaker 5SJ4

General technical data

number of poles1

design of pole1P

tripping characteristic classC

mechanical service life (operating cycles) typical10 000

installation environment regarding EMCSuitable for environment B (immunity to interference not applicable)

reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750F

overvoltage category3

degree of pollution3

Voltage

insulation voltage (Ui) at AC rated value440 V

— at 30 °C rated value16 A

— at 40 °C rated value16 A

— at 50 °C rated value15 A

— at 55 °C rated value14.5 A

— at 60 °C rated value14.1 A

operational current at AC rated value16 A

Supply voltage

at AC400 V

at DC rated value60 V

value range of the supply voltage frequency50/60 Hz

at AC according to UL 489 and CSA C22.2 No. 5-02 maximum120 V

at DC rated value maximum60 V

at DC 1-channel according to UL 489 and CSA C22.2 No. 5-02 maximum60 V

supply voltage frequency rated value50 Hz

Protection class

protection class IPIP 0 in the handle range

Breaking Capacity

according to EN 60898 rated value10 kA

according to IEC 60947-2 rated value15 kA

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole2.2 W

Main circuit

type of voltage supply at AC according to UL 489 and CSA C22.2 No. 5-02240/120

suitability for operationInfrastructure / Industry

Product details

product feature touch protectionYes

tunnel terminals topNo

tunnel terminals bottomNo

combined terminal topYes

combined terminal bottomYes

neutral conductor switchingNo

product feature halogen-freeYes

product feature sealableYes

product feature silicon-freeYes

product extension installable supplementary devicesYes

Product function

set values setting current (Ii) for I-tripping8

reference value setting current (Ii) for I-trippingx In

product function noteTerminal tightening torque for Cu, 60/75°C; 3.5Nm/31lb.in

Short circuit

short-circuit current breaking capacity (Icn) at AC according to UL 1077 and CSA C22.2 No.23514 kA

Connections

minimum0.75 mm²

maximum25 mm²

tightening torque with screw-type terminals maximum3.5 N·m

position of power supply cordAny

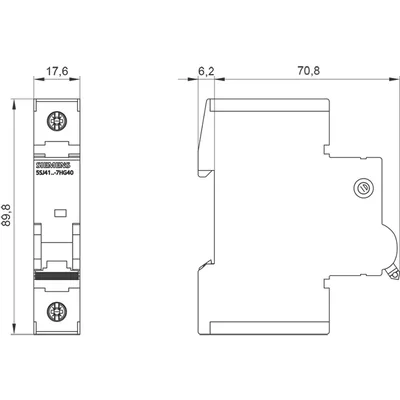

Mechanical Design

height90 mm

width18 mm

depth70 mm

installation depth70 mm

number of modular width units1

fastening methodon standard mounting rail

mounting positionany

Net Weight147.6 g

Environmental conditions

standardIEC / EN 60947-2 / UL 489

vibration resistance50 m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec)

vibration resistance according to IEC 60068-2-6±1 mm at 5 to 25 Hz; 50 m/s² at 25 to 150 Hz

minimum-25 °C

maximum55 °C

ambient temperature during operationmax. 95% humidity

minimum-40 °C

maximum75 °C
