How can I get a price quote for Siemens 5SH3538?

You can request a fast quote for Siemens 5SH3538 from Yılsa Engineering. Reference part number YLS2XI4LNBXCA0D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SH3538 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SH3538 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SH3538?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

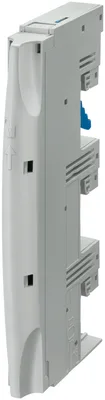

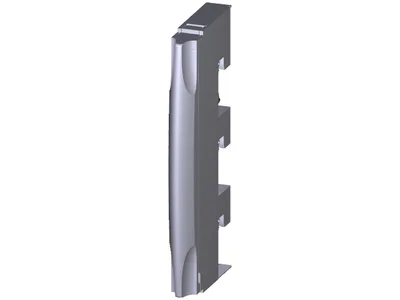

Siemens 5SH3538

Connection module 3-phase with cover F R 1.5-16 mm2 for 5/10 mm busbars

SiemensMFR # 5SH3538SKU # YLS2XI4LNBXCA0D

product brand nameSENTRON

product designationConnection module

at AC-15 at 110 V rated value63 A

at AC-15 at 230 V rated value63 A

at AC-15 at 500 V rated value63 A

suitability for use20, 25, 30 x 5, 10 and mounting rails

Have questions?Chat on WhatsApp

About This Product

Connection module 3-phase with cover F R 1.5-16 mm2 for 5/10 mm busbars

Siemens 5SH3538

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationConnection module

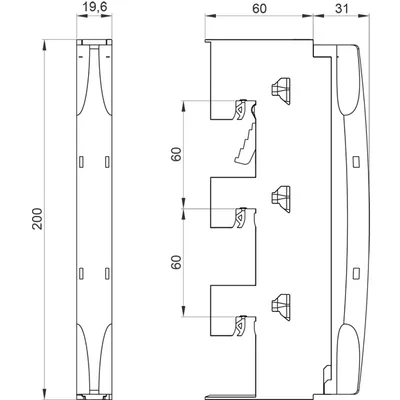

design of the productdistribution board components infeed, connection module, 3-phase for 5/10 mm busbars with cover, with screwless connection terminals, 200 mm long, 20 mm wide

at AC-15 at 110 V rated value63 A

at AC-15 at 230 V rated value63 A

at AC-15 at 500 V rated value63 A

suitability for use20, 25, 30 x 5, 10 and mounting rails

Accessories

accessoriesinfeed to busbar

minimum14

maximum6

finely stranded with core end processingCu 1.5 - 16 mm²

solid or strandedCu 1.5 - 16 mm²

Mechanical Design

height200 mm
