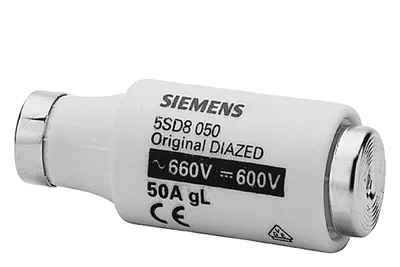

Siemens 5SD8050
DIAZED fuse link 690 V for cable and line protection Operating class gG Size DIII, E33, 50 A
product brand nameSENTRON
product designationDIAZED fuse link
design of the productFor cable and line protection
design of the fuse linkDIAZED fuse link
tripping characteristic classOther
operating class of the fuse linkgG
About This Product
DIAZED fuse link 690 V for cable and line protection Operating class gG Size DIII, E33, 50 A
Siemens 5SD8050
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Model
product brand nameSENTRON
product designationDIAZED fuse link
design of the productFor cable and line protection
design of the fuse linkDIAZED fuse link
General technical data
tripping characteristic classOther
size of fuse system according to EN 60269-1DIII
operating class of the fuse linkgG
Supply voltage
at AC690 V
at DC600 V
Protection class
protection class IPIP20, with connected conductors
Breaking Capacity
at AC according to IEC 60947-2 rated value50 kA
at DC according to IEC 60947-2 rated value8 kA
Dissipation
power loss [W]4.6 W
power loss [W] for rated value of the current at AC in hot operating state per pole4.6 W
Appearance
color coding of the fuse linkwhite
Product details
product descriptionUsing screw adapter or adapter sleeves
Mechanical Design
mounting positionAny, preferably vertical
Net Weight79 g
Environmental conditions
minimum-5 °C
maximum40 °C
environmental categoryUp to 45°C at 95 % rel. humidity
environmental category during storageair humidity 90% at 20°C
