How can I get a price quote for Siemens 5SD7712-0KK86?

You can request a fast quote for Siemens 5SD7712-0KK86 from Yılsa Engineering. Reference part number YLS0LCM7ONAE5. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SD7712-0KK86 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SD7712-0KK86 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SD7712-0KK86?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

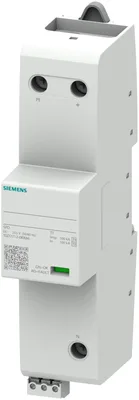

Siemens 5SD7712-0KK86

N-PE lightning current arrester single pol remote signalling contact Flow spark gap technology Fault indication Uc 255V Voltage prot. level <= 1.5kV Iimp 100kA width: 2 mod.

SiemensMFR # 5SD7712-0KK86SKU # YLS0LCM7ONAE5

standardIEC 61643-11: 2011, EN 61643-11: 2012

product designationSurge protection device

Test Class I, Type 1Yes

Test Class II, Type 2Yes

number of SPD ports1

design of the productlightning protection arrester

Have questions?Chat on WhatsApp

About This Product

N-PE lightning current arrester single pol remote signalling contact Flow spark gap technology Fault indication Uc 255V Voltage prot. level <= 1.5kV Iimp 100kA width: 2 mod.

Siemens 5SD7712-0KK86

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General data

standardIEC 61643-11: 2011, EN 61643-11: 2012

product designationSurge protection device

Test Class I, Type 1Yes

Test Class II, Type 2Yes

number of SPD ports1

design of the productlightning protection arrester

design of pole1

fastening methodEV005503

material of the enclosurethermoplast

size of surge arrester2 MW

degree of pollution2

protection class IP at connection all terminalsIP20

relative humidity during operation95 %

width36 mm

height150 mm

depth66 mm

Electrical data

type of distribution systemTT

at AC230 V

value range of the operating frequency50 / 60 Hz

at AC maximum255 V

between L and (PE)N at AC maximum255 V

total lightning impulse current at (10/350) µs100 kA

follow current extinguishing capability100 kAff

protection level1.5 kV

Response time100 ns

response time between L and (PE)N100 ns

response time between N and PE100 ns

Connections/ Terminals

type of electrical connectionScrew terminal

stripped length12 mm

signal designOptical, remote signaling contact

Indicator/remote signaling

product component remote signaling contactYes

switching function of the remote signaling contactschangeover contact

operating voltage of the remote signaling contacts at AC125 ... 250 V

connectable conductor cross-section for remote signaling contacts for finely stranded conductor1.5 mm²

tightening torque for remote signaling contacts0.2 N·m

stripped length of the cable for remote signaling contacts12 mm

NEMA/UL - Data

type of distribution systemTT

for remote signaling contacts3 lbf·in

stripped length [in]2 in

during operation-40 ... +80 °C

during storage-40 ... +80 °C

combustibility class according to UL 94V0

standards according to ULDekra
