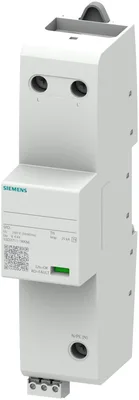

Siemens 5SD7711-1KK86
lightning arresters T1 maximum continuous voltage: 760 V width: 2 MW, fault indication surge arrester type 1 acc. to EN 61643-11 with remote signaling contact spark gap technology protection level: <= 4 kV lightning impulse current (10/350): 25 kA
standardIEC 61643-11: 2011, EN 61643-11: 2012
product designationSurge protection device
Test Class I, Type 1Yes
number of SPD ports1
design of the productlightning protection arrester
design of pole1
About This Product
lightning arresters T1 maximum continuous voltage: 760 V width: 2 MW, fault indication surge arrester type 1 acc. to EN 61643-11 with remote signaling contact spark gap technology protection level: <= 4 kV lightning impulse current (10/350): 25 kA
Siemens 5SD7711-1KK86
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General data
standardIEC 61643-11: 2011, EN 61643-11: 2012
product designationSurge protection device
Test Class I, Type 1Yes
number of SPD ports1
design of the productlightning protection arrester
design of pole1
fastening methodEV005503
material of the enclosurethermoplast
size of surge arrester2 MW
degree of pollution2
protection class IP at connection all terminalsIP20
relative humidity during operation95 %
width36 mm
height150 mm
depth66 mm
Electrical data
type of distribution systemTN-S, TN-C, TT
at AC690 V
value range of the operating frequency50 / 60 Hz
at AC maximum760 V
between L and (PE)N at AC maximum760 V
discharge current at (8/20) µs25 kA
between L and (PE)N at (8/20) µs25 kA
total lightning impulse current at (10/350) µs25 kA
lightning current peak value at (10/350) µs25 kA
follow current extinguishing capability25 kAff
protection level4 kV
Response time100 ns
response time between L and (PE)N100 ns
response time between N and PE100 ns
Connections/ Terminals
type of electrical connectionScrew terminal
stripped length12 mm
for finely stranded conductor2 mm²
signal designOptical, remote signaling contact
Indicator/remote signaling
product component remote signaling contactYes
switching function of the remote signaling contactschangeover contact
operating voltage of the remote signaling contacts at AC125 ... 250 V
connectable conductor cross-section for remote signaling contacts for finely stranded conductor2 ... 1.5 mm²
tightening torque for remote signaling contacts0.2 N·m
stripped length of the cable for remote signaling contacts12 mm
NEMA/UL - Data
type of distribution systemTN-S, TN-C, TT
for remote signaling contacts3 lbf·in
stripped length [in]2 in
during operation-40 ... +80 °C
during storage-40 ... +80 °C
combustibility class according to UL 94V0
standards according to ULUL, CSA
