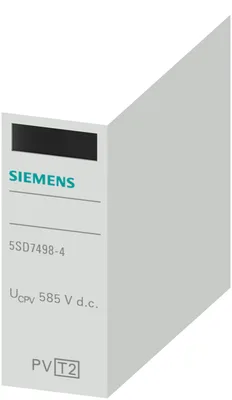

Siemens 5SD7498-4
More information on contact persons: www.siemens.com/lowvoltage/contact 5SD7483-0KK02
standardIEC 61643-11: 2011
Test Class I, Type 1No
Test Class II, Type 2Yes
Test Class III, Type 3No
number of SPD ports1
designation of the protective paths(L+)-(L-)
About This Product
More information on contact persons: www.siemens.com/lowvoltage/contact 5SD7483-0KK02
Siemens 5SD7498-4
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General data
standardIEC 61643-11: 2011
Test Class I, Type 1No
Test Class II, Type 2Yes
Test Class III, Type 3No
number of SPD ports1
designation of the protective paths(L+)-(L-)
material of the enclosurePA 6.6
size of surge arrester1 MW
degree of pollution2
relative humidity during operation5 ... 95 %
installation altitude at height above sea level maximum2 000 m
Electrical data
type of distribution systemPV
at DC1 000 V
at DC maximum1 000 V
discharge current at (8/20) µs15 kA
discharge current 1 phase at (8/20) µs maximum40 kA
protection level3.7 kV
maximum3.7 kV
at rated value of discharge current maximum3.7 kV
at 10 kA maximum3.7 kV
at 5 kA maximum2.5 kV
Response time25 ns
MPP voltage1 170 V
Connections/ Terminals
signal designOptical, remote signaling contact
Indicator/remote signaling
product component remote signaling contactNo
NEMA/UL - Data
type of distribution systemPV
during operation-40 ... +80 °C
during storage-40 ... +80 °C
combustibility class according to UL 94V0
